Anchor Diamond Pro Stone Cut Wall

Product Description

Features & Benefits

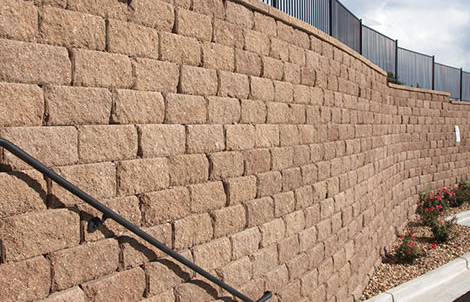

The Diamond Pro Stone Cut™ Series by Anchor Wall Systems features a patented rear-lip system that guarantees uniform setback, effortless installation, and reliable grid connections, maintaining the trusted performance of the Diamond Pro™ Series. This series boasts a natural appearance, enabling you to blend earthen tones, rich textures, and varied contours, all while benefiting from the structural integrity provided by the rear-lip locator system.

Dimensions: 8″ x 18″ x 12″
Weight: 77 lbs.
Coverage: 1 sq. ft.
Setback (batter): 1″ (7.13º)

Rear-Lip Locator: Ensures uniform setback and easy installation
Large Cores: Facilitates ease in handling and placement
Matching Corner and Cap Units: Provides a seamless and cohesive appearance
Versatile Design: Available in various sizes, including large, medium, and small blocks, as well as corner and cap units
Gravity Walls: Can be built up to 4 feet high, including the buried course, with a 7.1° batter
Tall Walls: Walls in excess of 50 feet high can be constructed using geosynthetic reinforcement
Radius Options: Minimum outside radius (top course to the front of the units) is 4 feet, and minimum inside radius (base course to the front of the units) is 6 feet
