Tie-Grabbers

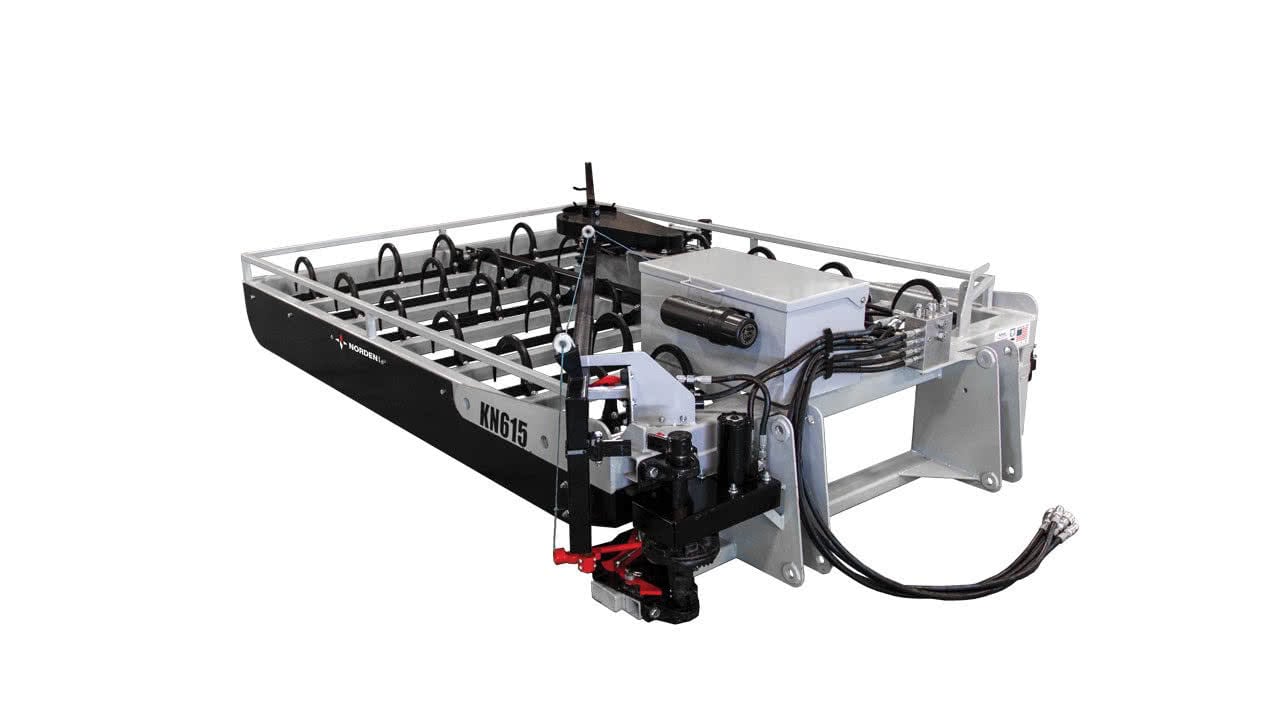

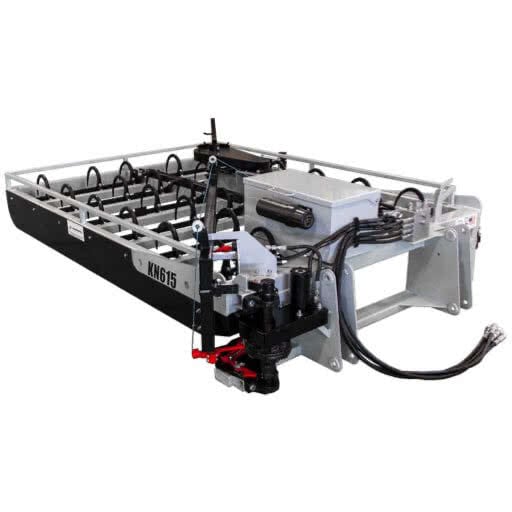

KN615
- The KN615 Tie-Grabber picks up and ties bales that are arranged by the AE15 bale accumulator. Three long, five wide, on edge.
- This model’s 15-bale arrangement offers a 33% time-saving advantage in comparison to a 10-bale option, with each grab containing 50% more bales and with a 33% reduction in the number of bundles
- Configuration completely fills a 9’ by 20’ wagon
- Requires a loader with at least 2,400lb lift capacity, and one set of remotes with an optional splitter or two sets of remotes without a splitter
Explore TheKN615 Tie-Grabber
1
-
1KNOTTER
This highly reliable Rasspe Knotter allows for a consistent tying method.
-
2SQUEEZE ARM
Once the machine is aligned with the bale bundle, the Squeeze Arm applies pressure and squeezes the bales tightly together to form a strong and compact bundle. This arm is important for creating a bundle that is easy to stack, move, and load.
-
3LOADER MOUNT
This customizable option allows you the flexibility to move between multiple loader hookups.
-
4TWINE ARM
When hydraulically engaged, the twine arm wraps twine around the bundle of bales to hold the bundle together.
-
5MULTIPLE HOSE OPTIONS
This machine allows you to choose two hydraulic hoses with a wire control in the cab, or a four hydraulic hose option. This customizable feature allows you to choose the best option for your operation.
DETAILED SPECS
Bale Configuration
5 Bales Wide and 3 Bales Long
Bundle Dimensions
70” Wide by 96” to 132” Long
Required Loader Capacity
2,400 lbs.
Working Height
2 ft. 6 in.
Working Length
7 ft. 11 in.
Working Width
6 ft. 0 in.
