Tie-Grabbers

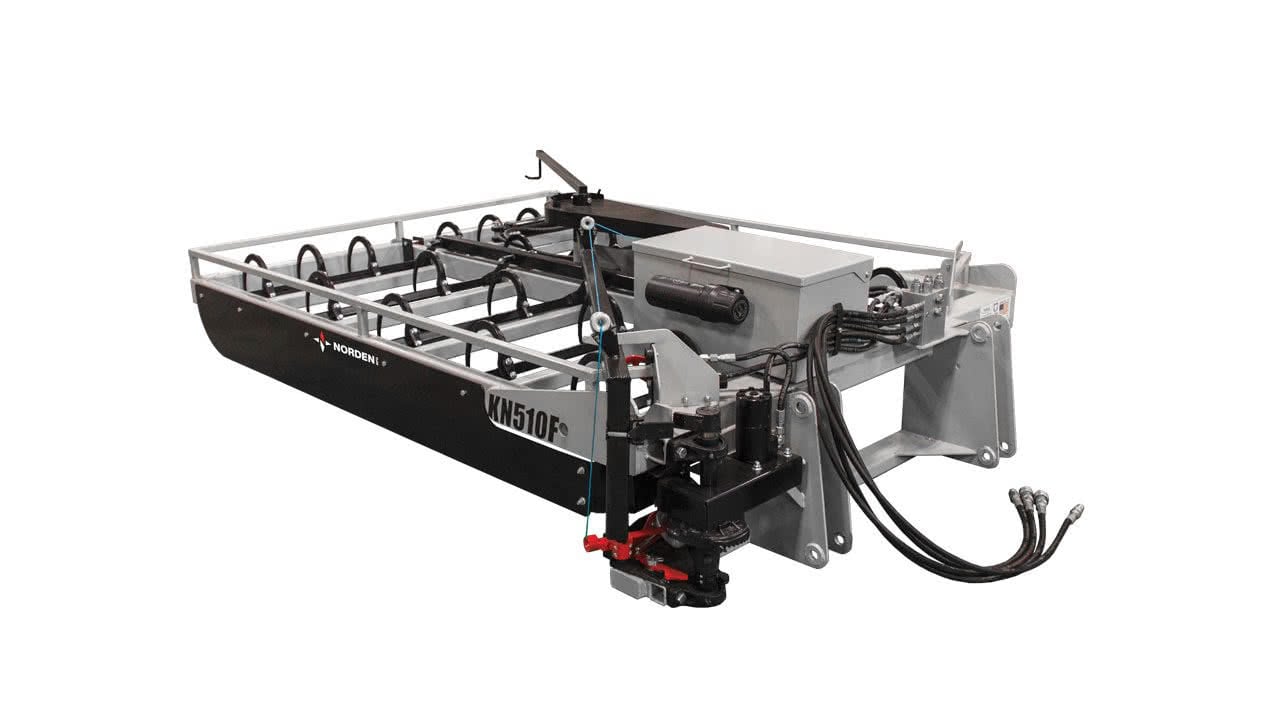

KN510F
- The KN510F Tie-Grabber picks up and ties bales that are arranged by the AF10 bale accumulator. Four wide, two long plus tie row, flat on strings.
- A lower weight requirement for this tie-grabber allows for the use of a smaller loader, and the bundle can be picked up from any of its sides
- The square dimensions of this arrangement allow for cross-stacking
- Requires a loader with at least 1,900lb lift capacity, and one set of remotes with an optional splitter or two sets of remotes without a splitter
Explore TheKN510F Tie-Grabber
1
-
1KNOTTER
This highly reliable Rasspe Knotter allows for a consistent tying method.
-
2SQUEEZE ARM
Once the machine is aligned with the bale bundle, the Squeeze Arm applies pressure and squeezes the bales tightly together to form a strong and compact bundle. This arm is important for creating a bundle that is easy to stack, move, and load.
-
3LOADER MOUNT
This customizable option allows you the flexibility to move between multiple loader hookups.
-
4TWINE ARM
When hydraulically engaged, the twine arm wraps twine around the bundle of bales to hold the bundle together.
-
5MULTIPLE HOSE OPTIONS
This machine allows you to choose two hydraulic hoses with a wire control in the cab, or a four hydraulic hose option. This customizable feature allows you to choose the best option for your operation.
DETAILED SPECS
Bale Configuration
4 Bales Wide and 2 Bales Long, plus a tie row with 2 bales turned sideways
Bundle Dimensions
72” to 76” Wide by 88” to 94” Long
Required Loader Capacity
1,900 lbs.
Working Height
2 ft. 6 in.
Working Length
7 ft. 6 in.
Working Width
6 ft. 0 in.
