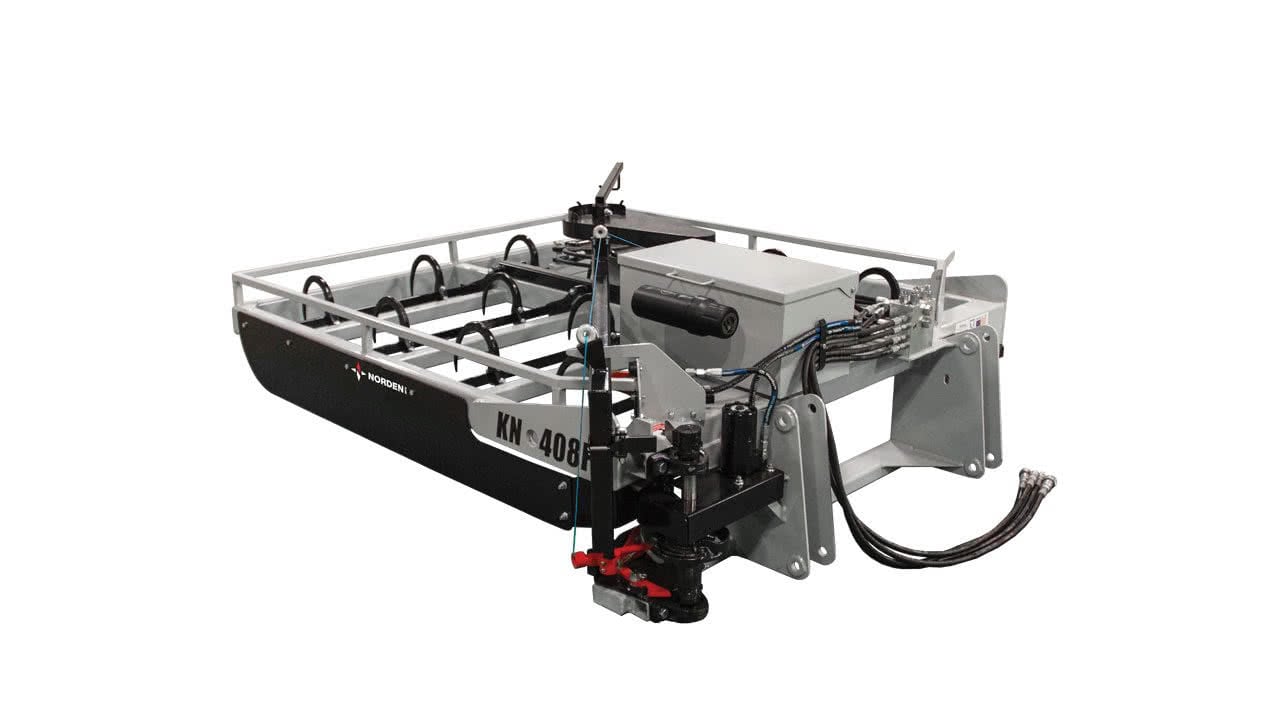

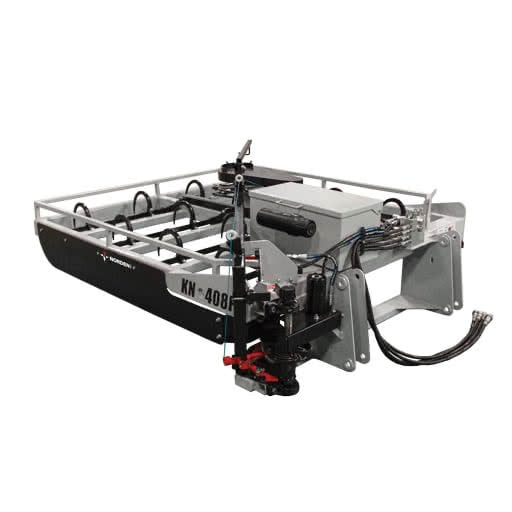

Tie-Grabbers
KN408F
- The KN408F Tie-Grabber picks up and ties bales that are arranged by the AF8 bale accumulator. Two long, four wide, flat on strings.
- A lower weight requirement for this Tie-Grabber allows for the use of a smaller loader, and the bundle can be picked up from any of its sides
- Square dimensions of this arrangement allow for cross-stacking, and the 2-bale length allows for narrower wagons or for longer bales
- Requires a loader with at least 1,700lb lift capacity, and one set of remotes with an optional splitter or two sets of remotes without a splitter
Explore TheKN408F Tie-Grabber
1
-
1KNOTTER
This highly reliable Rasspe Knotter allows for a consistent tying method.
-
2SQUEEZE ARM
Once the machine is aligned with the bale bundle, the Squeeze Arm applies pressure and squeezes the bales tightly together to form a strong and compact bundle. This arm is important for creating a bundle that is easy to stack, move, and load.
-
3LOADER MOUNT
This customizable option allows you the flexibility to move between multiple loader hookups.
-
4TWINE ARM
When hydraulically engaged, the twine arm wraps twine around the bundle of bales to hold the bundle together.
-
5MULTIPLE HOSE OPTIONS
This machine allows you to choose two hydraulic hoses with a wire control in the cab, or a four hydraulic hose option. This customizable feature allows you to choose the best option for your operation.
DETAILED SPECS
Bale Configuration
4 Bales Wide and 2 Bales Long
Bundle Dimensions
72” Wide by 64” to 96” Long
Required Loader Capacity
1,700 Lbs.
Working Height
2 ft. 6 in.
Working Length
6 ft. 0 in.
Working Width
6 ft. 0 in.
