Accumulators
AF8
- Bales arranged flat with their string side down, 4 bales wide/2 bales long
- Handles bales from 32” to 48” in length
- 8-bale grouping is ideal for small farms, compatible with a smaller loader because it’s under the maximum weight requirement of a grabber
- If the bales are 36” long, you are able to cross-stack them with the 408 Grabber
- Bundle dimensions are 72” wide by 64”- 96” long

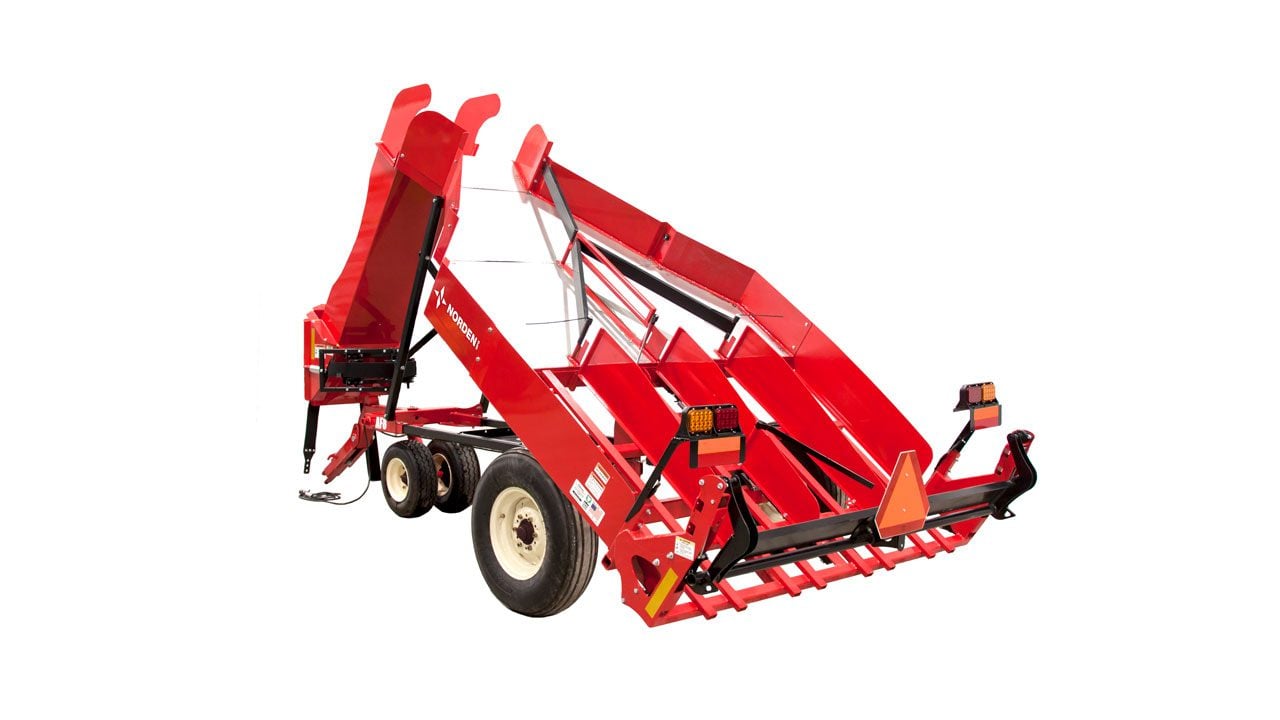

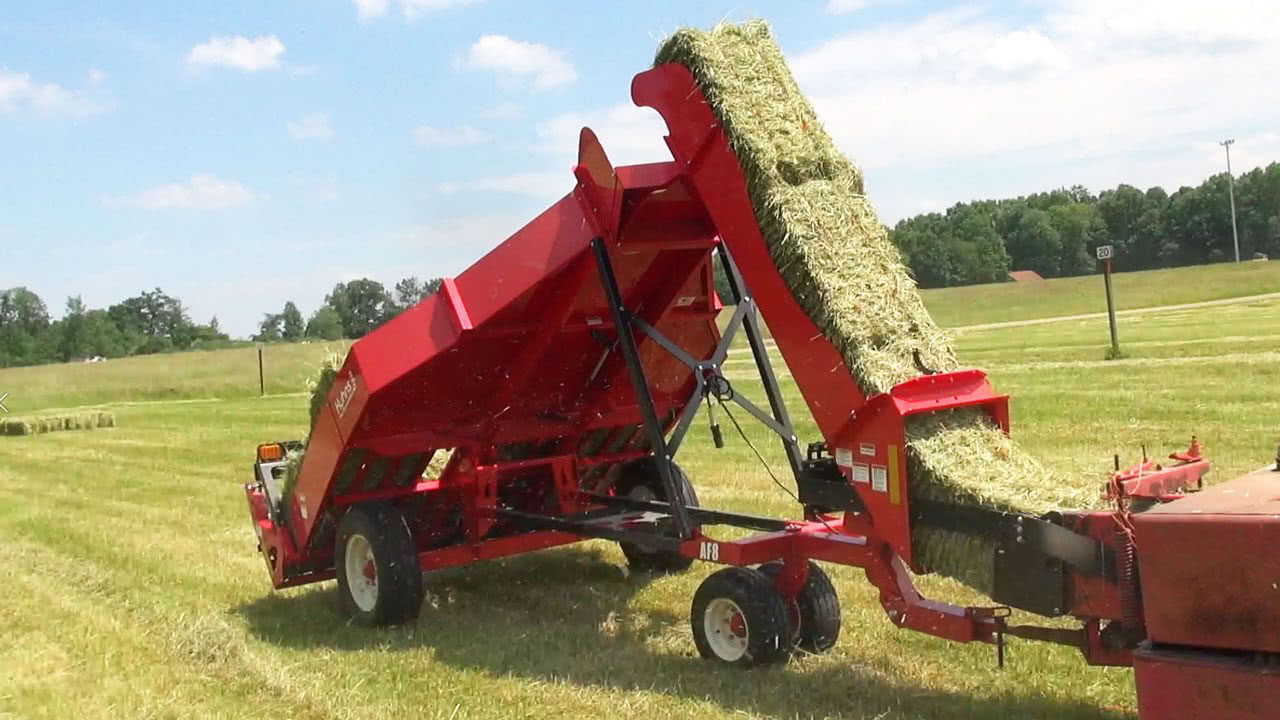

Explore TheAF8 Bale Accumulator
1
-
1STRAIGHT CHUTE
The straight chute allowed each bale to stay flat on its strings, while the baler provides the force needed to push the bales to the top of the chute.
-
2STAINLESS STEEL DECK
The stainless steel deck provides a better surface for the bales to slide in higher dirt and moisture conditions.
-
3GRAVITY DRIVEN GATES AND FINAL BALE LEVER
As gravity moves the bales downward, the last bale in each row swings a gate to open the next row. The last bale in the grab opens the back gate.
-
4AUTOMATIC LIFT GATE
The last bale in the grab opens the back gate. As the accumulator unloads itself, springs and counterweights automatically return all the gates back to their starting position, ready for the next bale.
-
5GUIDE BELTING
Sharp turns are no problem as the guide belt keeps bales properly aligned and moving up the chute.
DETAILED SPECS
Bale Configuration
4 Bales Wide and 2 Bales Long
Bundle Dimensions
72" Wide by 64" to 96" Long
Required Loader Capacity
2010 lbs.
Working Height
9 ft. 2 in.
Working Length
17 ft. 0 in.
Working Width
7 ft. 10 in.
