Accumulators
AF12
- Bales arranged flat with their string side down, 4 bales wide/3 bales long
- Handles bales from 32” to 44” in length
- 12-bale grouping is well-suited to fill a 20’ wagon
- Bundle dimensions are 72” wide by 96”- 132” long

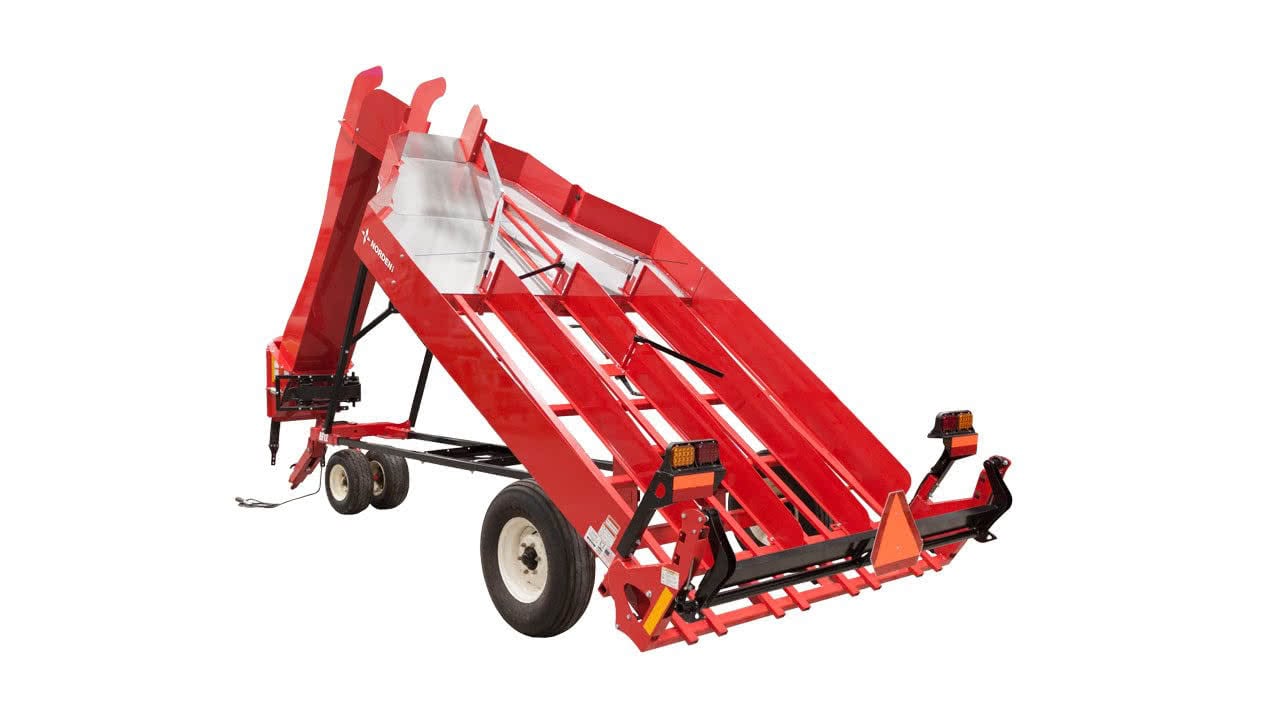

Explore TheAF12 Bale Accumulator
1
-
1STRAIGHT CHUTE
The straight chute allows each bale to stay flat on its strings, while the baler provides the force needed to push the bales to the top of the chute.
-
2STAINLESS STEEL DECK
Stainless Steel Deck provides a better surface for the bales to slide in higher dirt and moisture conditions.
-
3GRAVITY DRIVEN GATES AND FINAL BALE LEVER
As gravity moves the bales downward, the last bale in each row swings a gate to open the next row. The last bale in the grab opens the back gate.
-
4AUTOMATIC LIFT GATE
The last bale in the grab opens the back gate. As the accumulator unloads itself, springs and counterweights automatically return all the gates back to their starting position, ready for the next bale.
-
5GUIDE BELTING
Sharp turns are no problem as the guide belt keeps bales properly aligned and moving up the chute.
DETAILED SPECS
Bale Configuration
4 Bales Wide and 3 Bales Long
Bundle Dimensions
72" Wide by 96" to 132" Long
Required Loader Capacity
2290 lbs.
Working Height
11 ft. 1 in.
Working Length
21 ft. 1 in.
Working Width
7 ft. 10 in.
