Accumulators

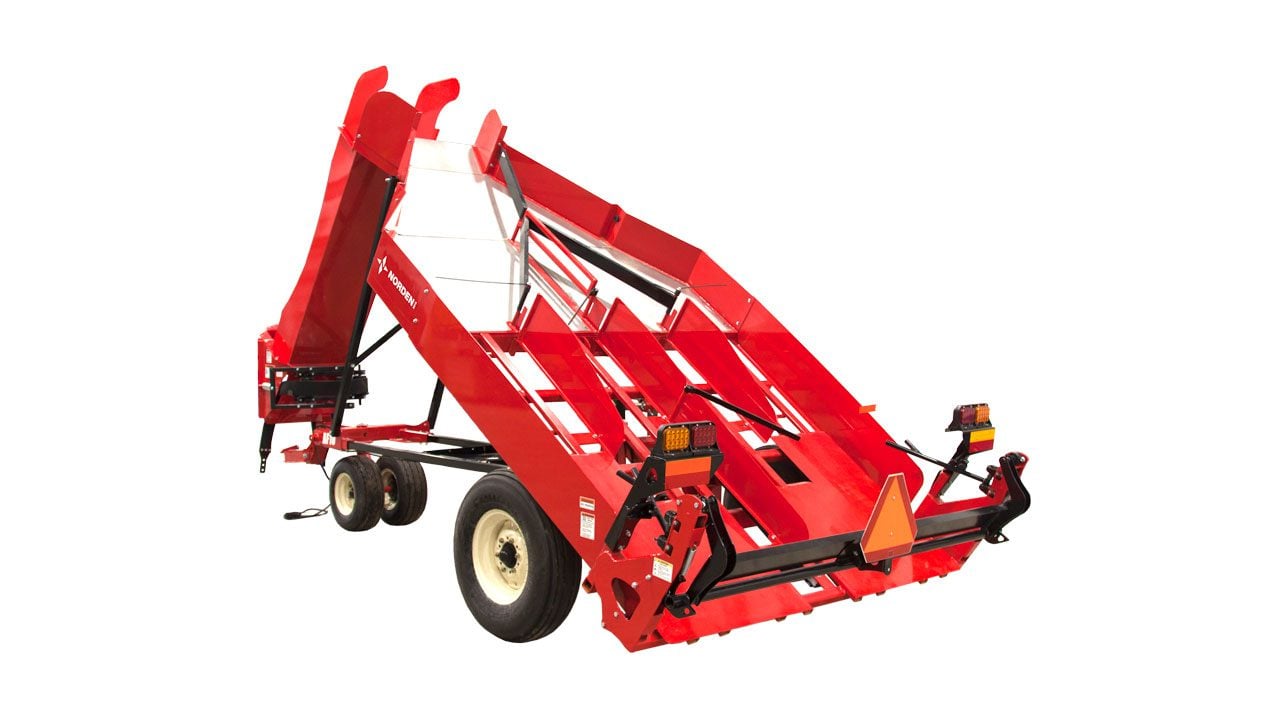

AF10
- Most popular bale accumulator sold by Norden Mfg.
- 10 bales arranged flat with their string side down, 4 bales wide/2 bales long and two tie bales turned sideways to the rest of the group.
- Handles bales from 32” to 36” in length
- 10-bale grouping is well-suited for small farms, compatible with a smaller loader because its lighter weight is under the maximum weight requirement of a grabber
- Bundles fill a 7.5’ wagon from one side to the other, and the tie row allows for cross-stacking with the KN510F Tie-Grabber or the 510F Grabber, making loads more stable on wagons and in trucks
- Bundle dimensions are 72”- 76” wide by 86”- 94” long
Explore TheAF10 Bale Accumulator
1
-
1STRAIGHT CHUTE

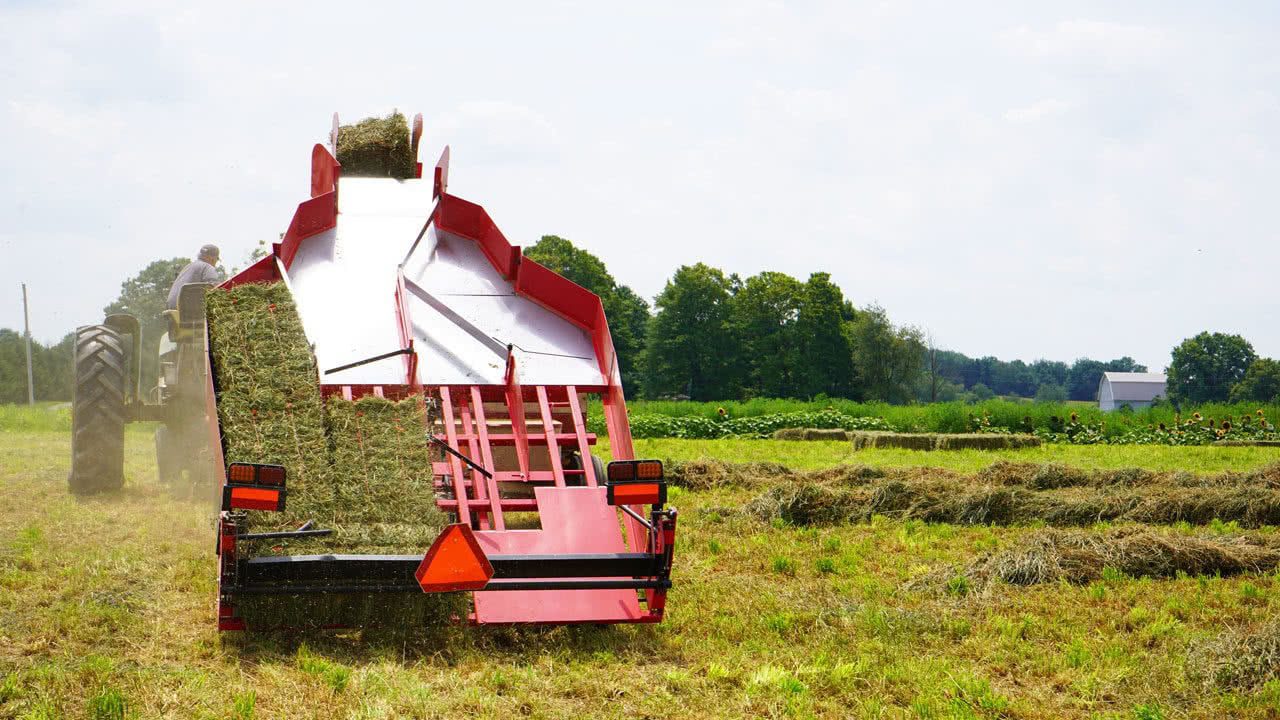

The straight chute allows each bale to stay flat on its strings, while the baler provides the force needed to push the bales to the top of the chute.
-
2STAINLESS STEEL DECK
Stainless Steel Deck provides a better surface for the bales to slide in higher dirt and moisture conditions.
-
3GRAVITY DRIVEN GATES AND FINAL BALE LEVER
As gravity moves the bales downward, the last bale in each row swings a gate to open the next row. The last bale in the grab opens the back gate.
-
4AUTOMATIC LIFT GATE
The last bale in the grab opens the back gate. As the accumulator unloads itself, springs and counterweights automatically return all the gates back to their starting position, ready for the next bale.
-
5GUIDE BELTING
Sharp turns are no problem as the guide belt keeps bales properly aligned and moving up the chute.
DETAILED SPECS
Bale Configuration
4 Bales Wide and 2 Bales Long + Tie Row of 2 (Sideways)
Bundle Dimensions
72” to 76” Wide by 88” to 94” Long
Required Loader Capacity
2240 lbs.
Working Height
10 ft. 1 in.
Working Length
18 ft. 10 in.
Working Width
7 ft. 10 in.
