Accumulators
AE18
- Bales arranged on edge, 6 bales wide/3 bales long
- Norden Mfg.’s largest Accumulator model
- Handles bales from 32” to 44” in length
- 18-bale grouping offers a 17% time-saving advantage in comparison to a 15-bale grouping, with each grab from the AE18 containing 20% more bales, and with a 17% reduction in the number of packs
- AE18 is ideal for filling van trailers from the rear
- Bale arrangement allows a 9’ x 24’ wagon to be completely filled

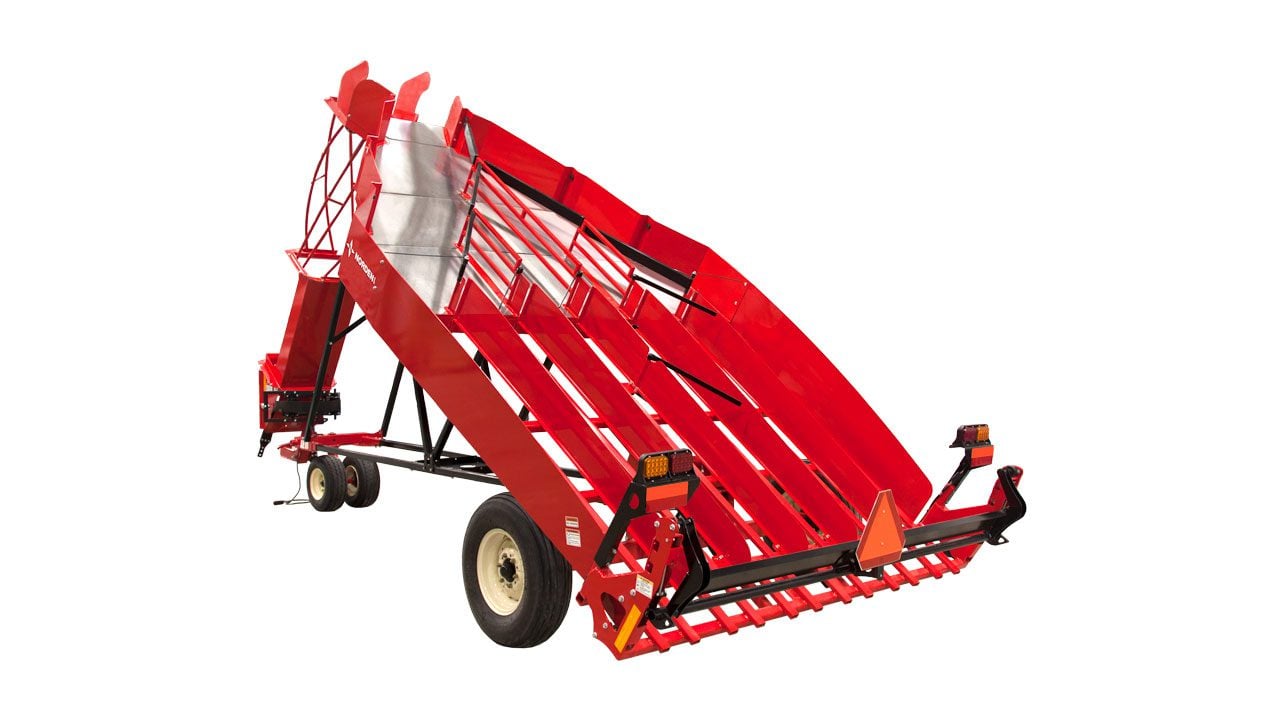

Explore TheAE18 Bale Accumulator
1
-
1Twisted Chute

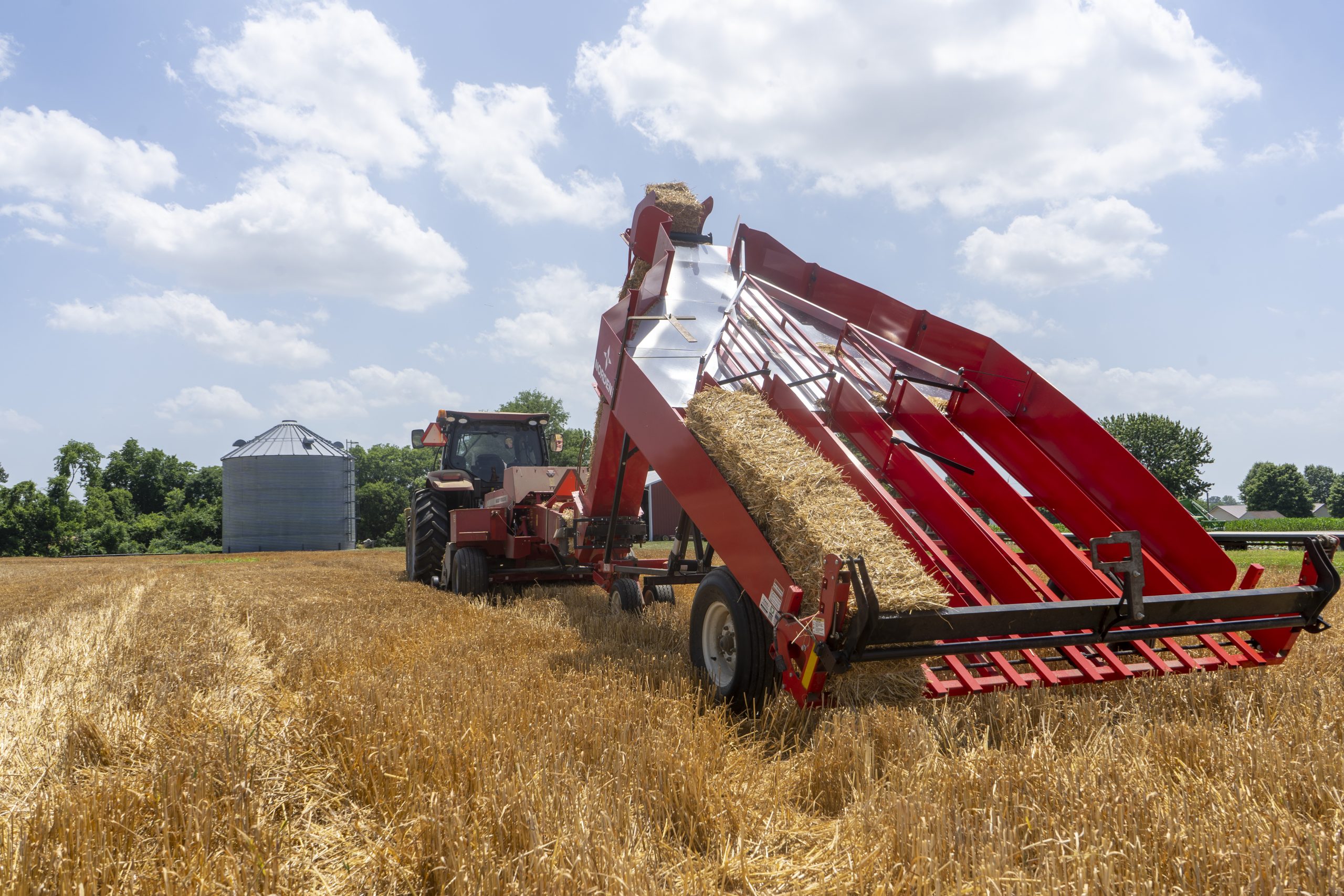

The twisted chute turns each bale onto its side, while the baler provides the force needed to push the bales to the top of the chute.
-
2Stainless Steel Deck
The stainless steel deck provides a better surface for the bales to slide in higher dirt and moisture conditions.
-
3Gravity Driven Gates and Bale Lever
As gravity moves the bales downward, the last bale in each row swings a gate to open the next row. The last bale in the grab opens the back gate.
-

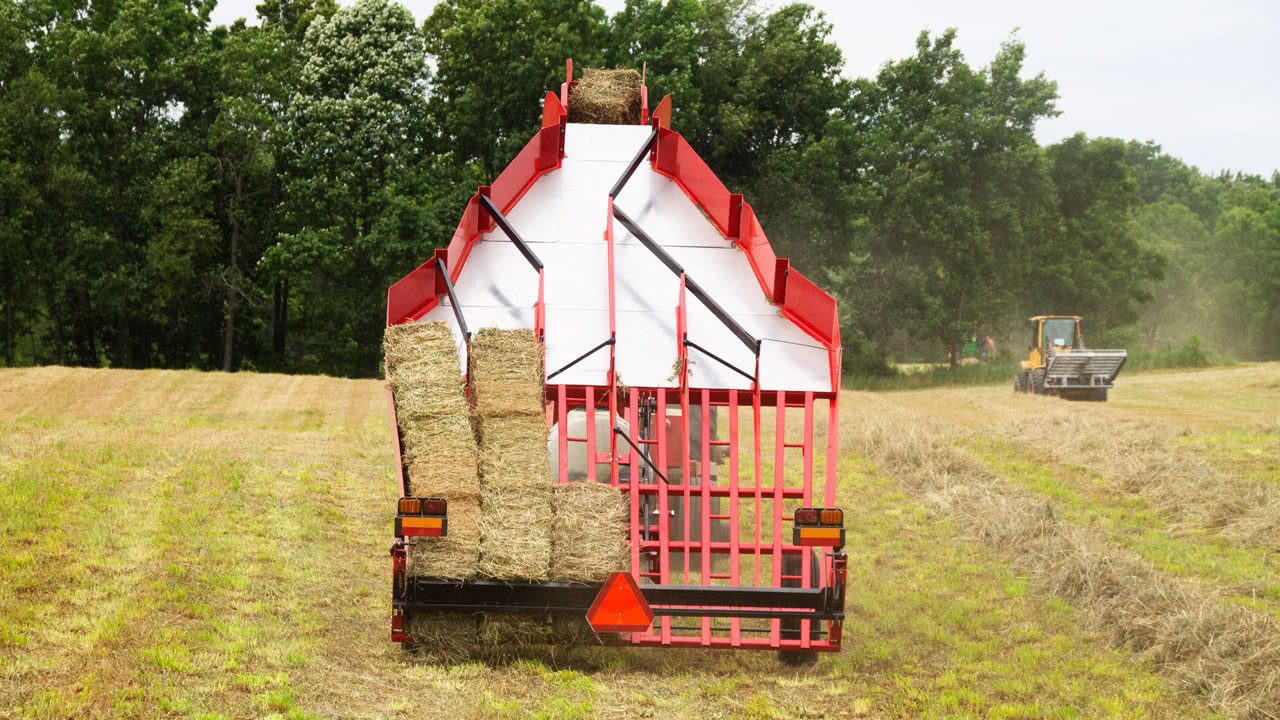

4Automatic Lift Gate
The last bale in the grab opens the back gate. As the accumulator unloads itself, springs and counterweights automatically return all the gates back to their starting position, ready for the next bale.
-
5Guide Belting
Sharp turns are no problem as the guide belt keeps bales properly aligned and moving up the chute.
DETAILED SPECS
Bale Configuration
6 Bales Wide and 3 Bales Long
Bundle Dimensions
90” Wide by 96” to 120” Long
Required Loader Capacity
3030 lbs.
Working Height
12 ft. 7 in.
Working Length
24 ft. 7 in.
Working Width
9 ft. 4 in.
