Accumulators
AE10
- Bales arranged on edge, 5 bales wide/2 bales long
- Handles bales from 32” to 36” in length
- 10-bale grouping is ideal for smaller operations, compatible with a small loader because its lighter weight is under the maximum weight requirement of a grabber
- Bales in this arrangement are 36” long, enabling cross-stacking of bales with the KN510 Tie-Grabber or 510 Grabber models

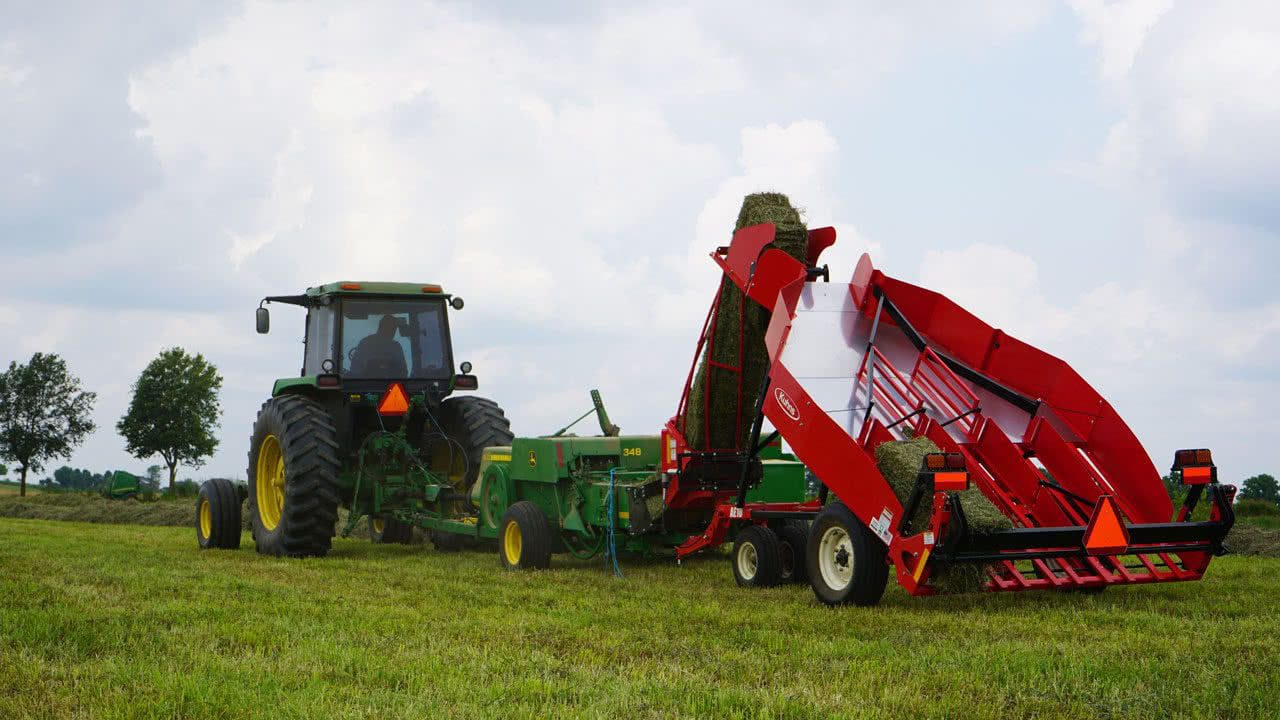

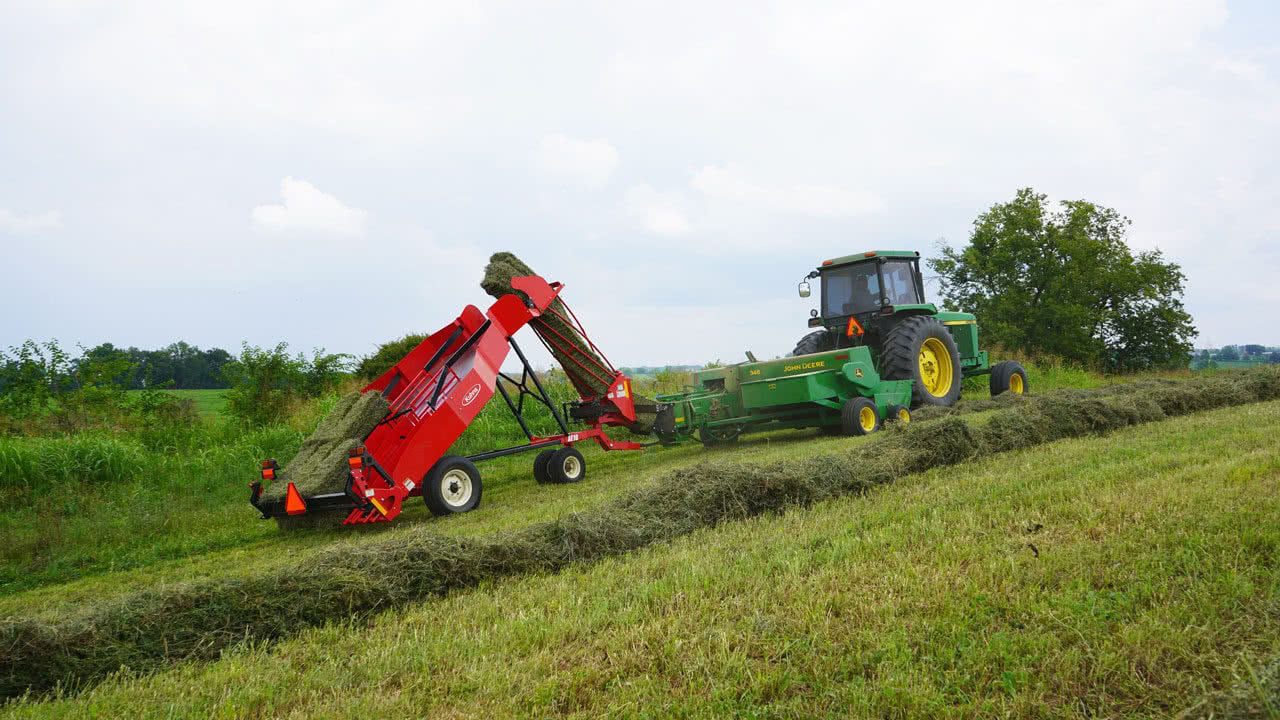

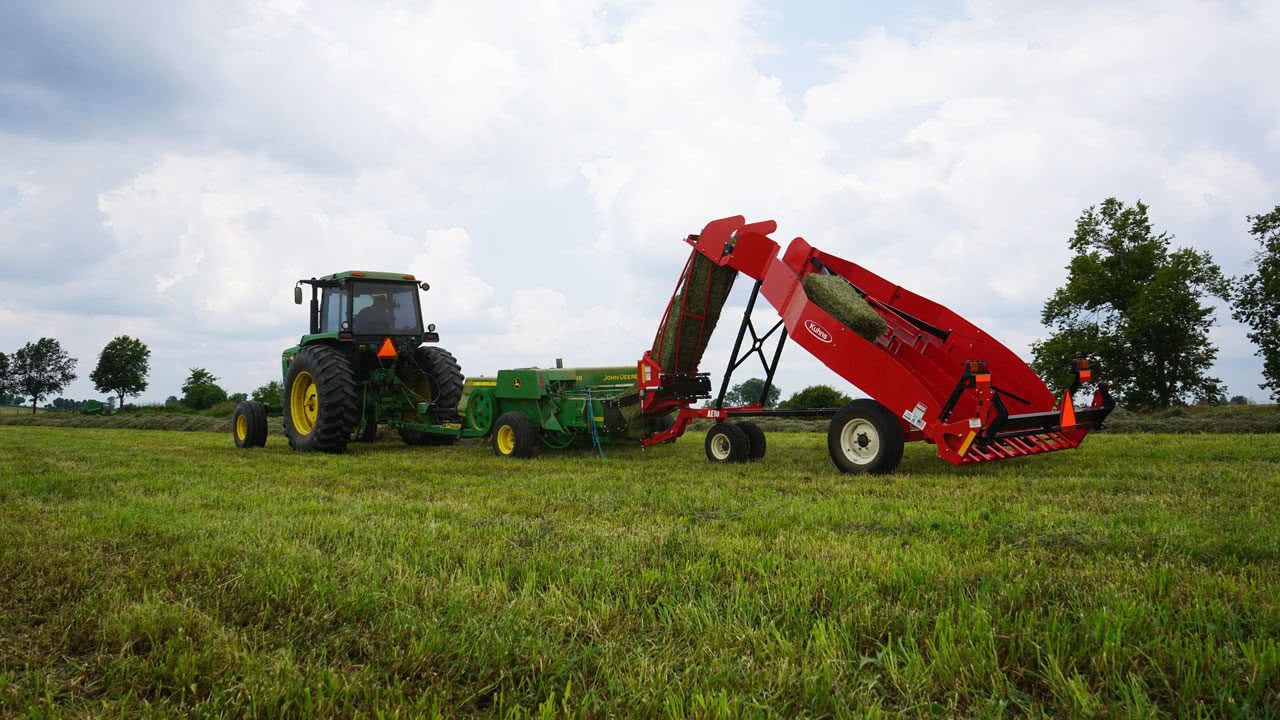

Explore TheAE10 Bale Accumulator
1
-

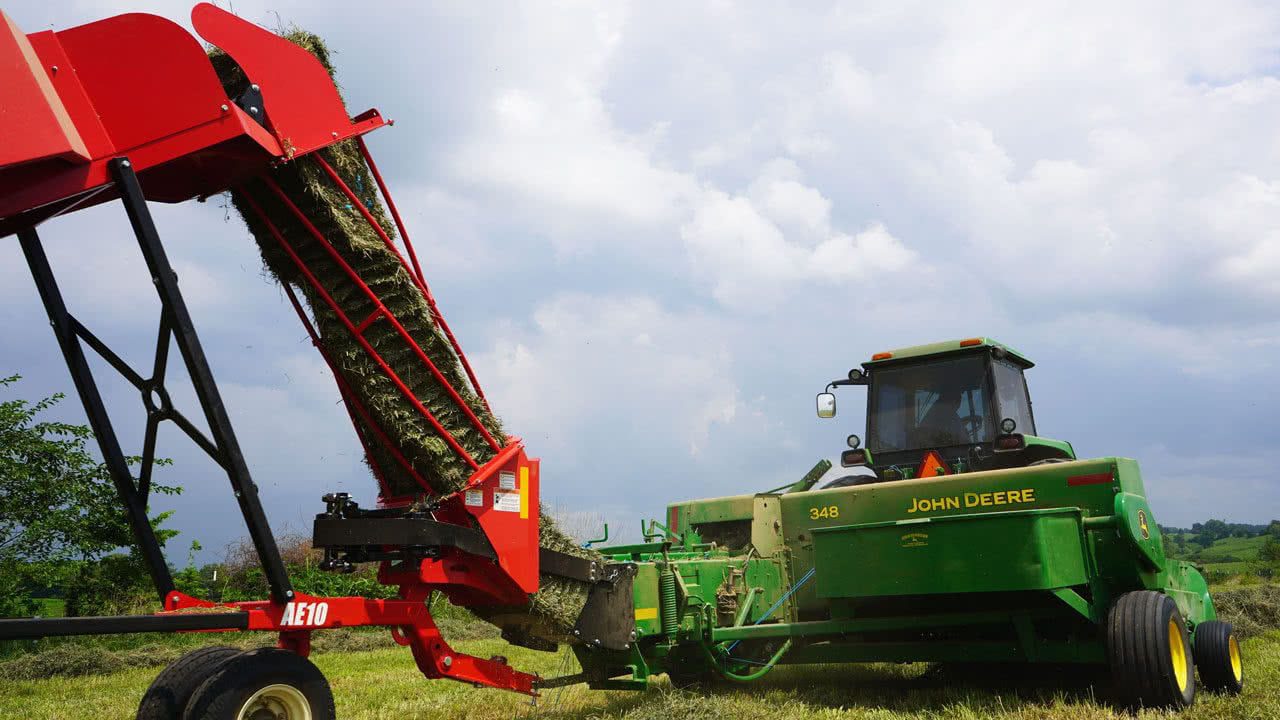

1TWISTED CHUTE
The twisted chute turns each bale onto its side, while the baler provides the force needed to push the bales to the top of the chute.
-

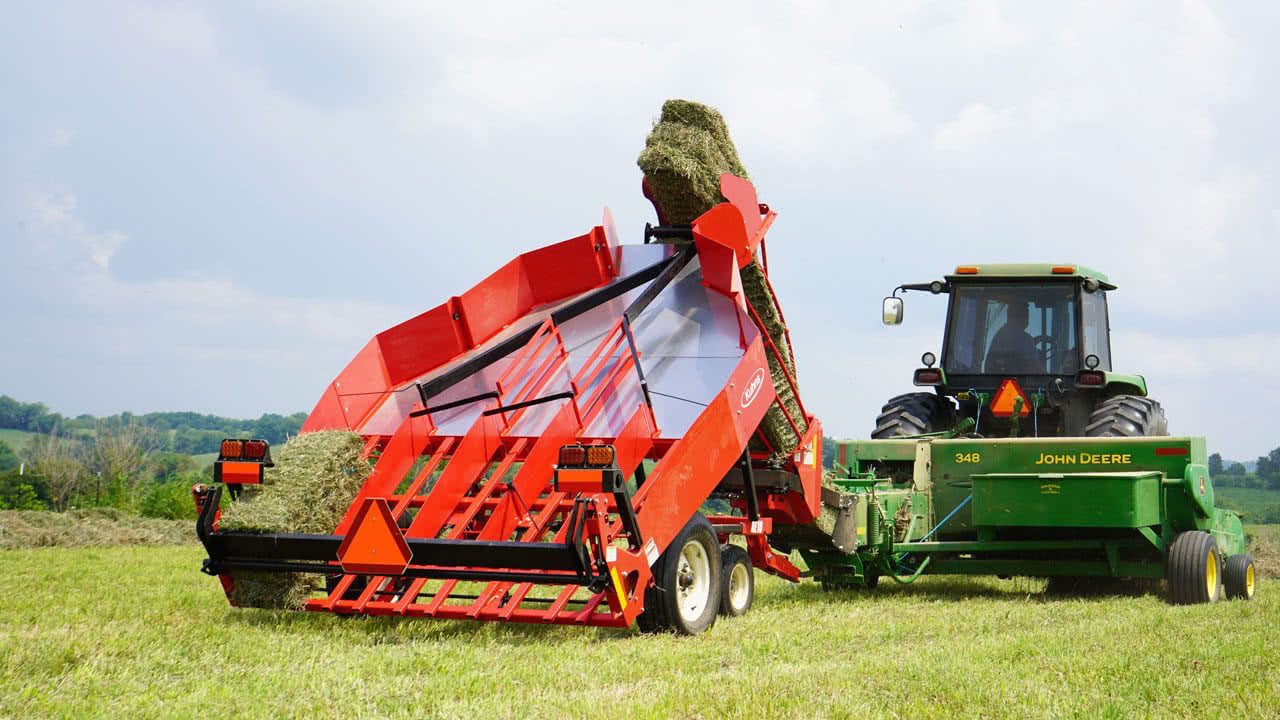

2STAINLESS STEEL DECK
The stainless steel deck provides a better surface for the bales to slide in higher dirt and moisture conditions.
-
3GRAVITY DRIVEN GATES AND FINAL BALE LEVER
As gravity moves the bales downward, the last bale in each row swings a gate to open the next row. The last bale in the grab opens the back gate.
-

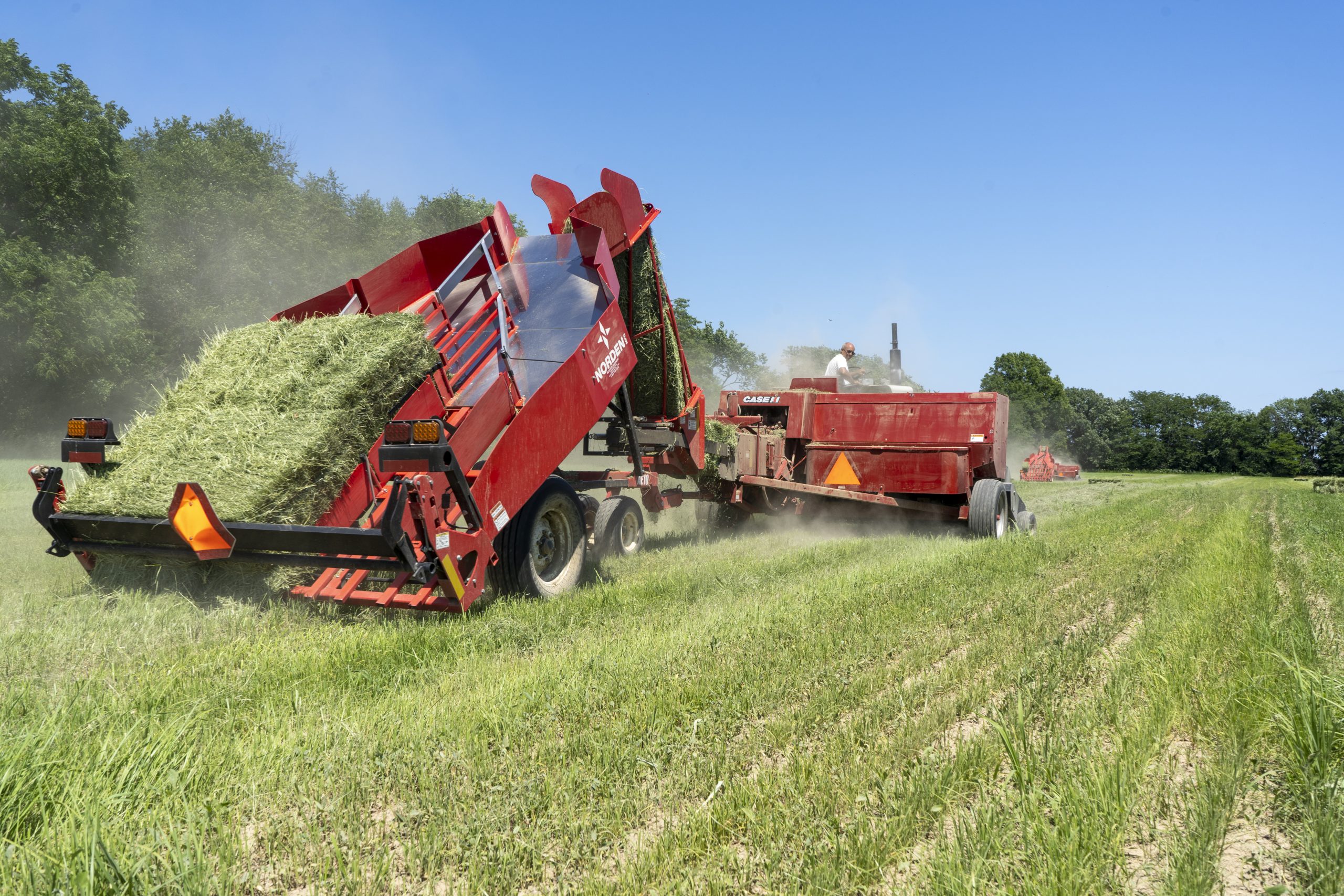

4AUTOMATIC LIFT GATE
The last bale in the grab opens the back gate. As the accumulator unloads itself, springs and counterweights automatically return all the gates back to their starting position, ready for the next bale.
-
5GUIDE BELTING
Sharp turns are no problem as the guide belt keeps bales properly aligned and moving up the chute.
DETAILED SPECS
Bale Configuration
5 Bales Wide and 2 Bales Long
Bundle Dimensions
75” Wide by 64” to 96” Long
Required Loader Capacity
2,130 lbs
Working Height
9 ft. 2 in.
Working Length
17 ft. 4 in.
Working Width
7 ft. 10 in.
