Grabbers
618

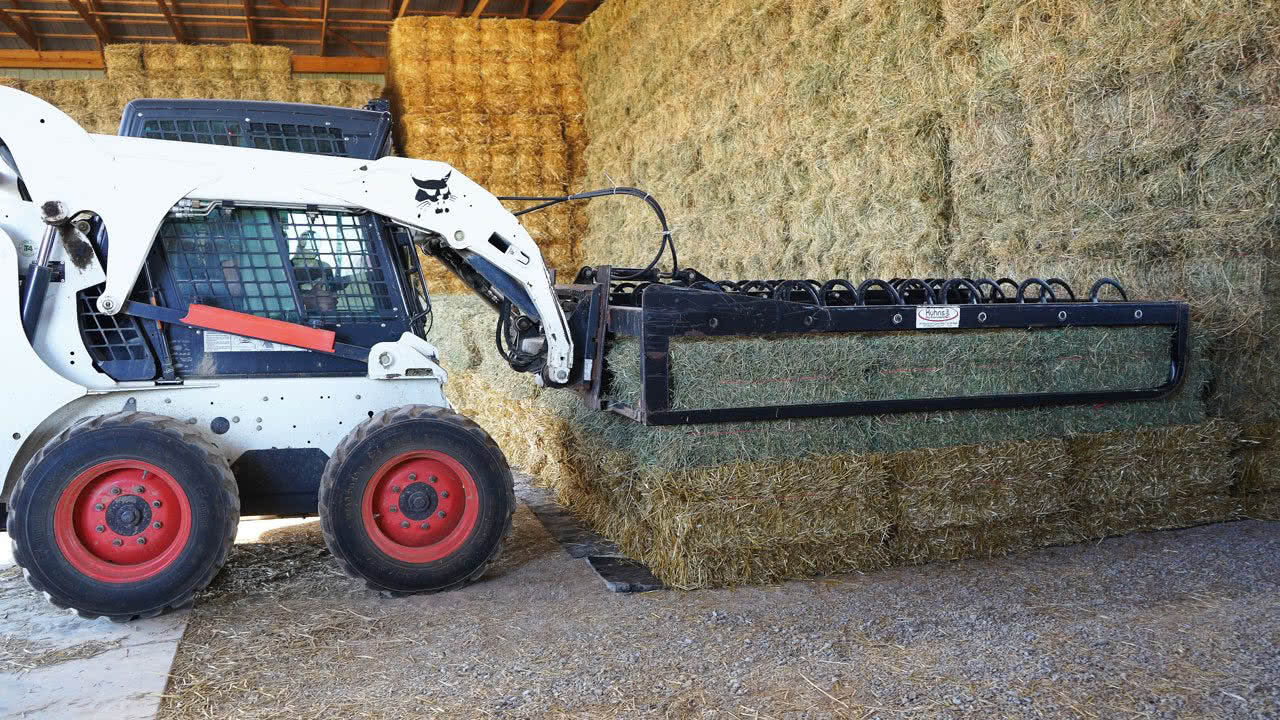

- For moving and grabbing 18-bale bundles
- 18-bale grouping offers a 17% time-saving advantage in comparison to a 15-bale grouping, with each grab containing 20% more bales, and with a 17% reduction in the number of bundles
- Bundle arrangement ideal for filling van trailers from the rear and for filling 9’ by 24’ wagons
- Requires a loader with at least 2,200lb lift capacity and one set of remotes

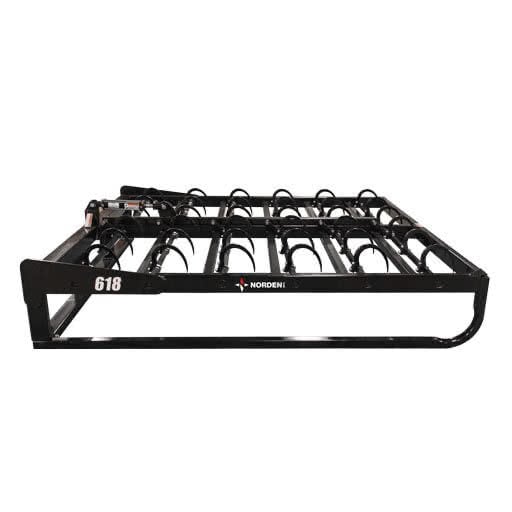

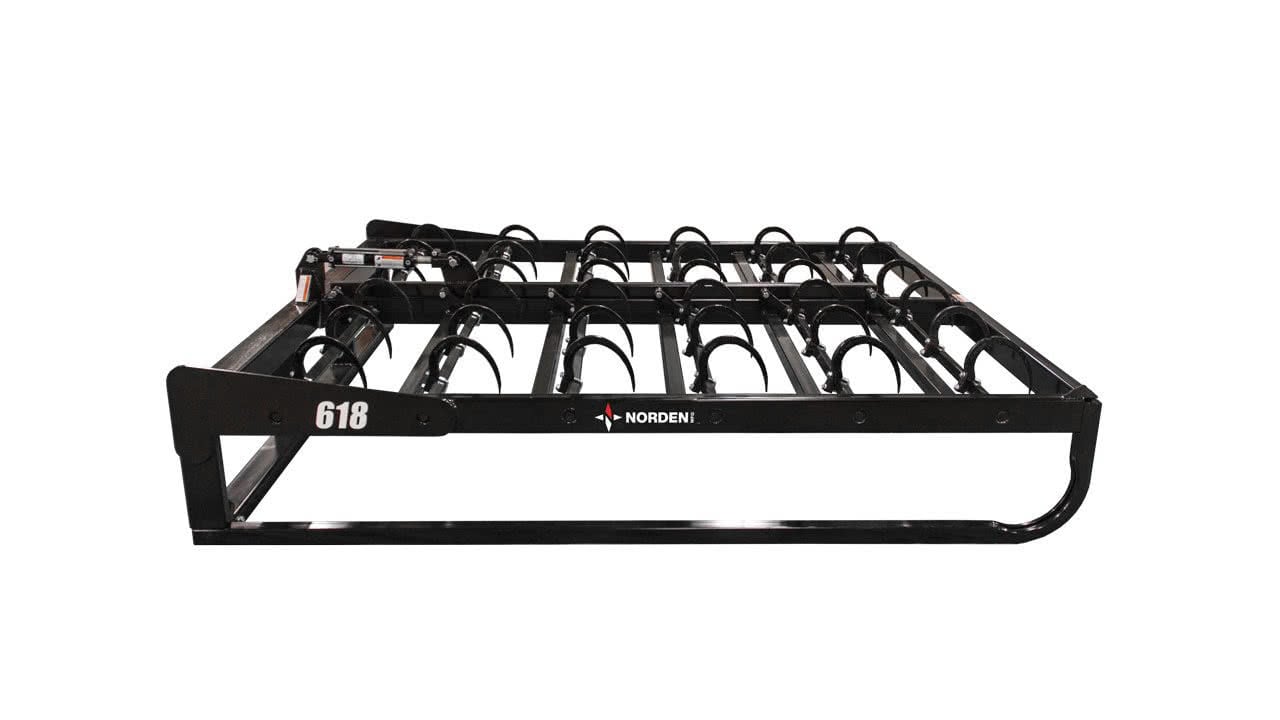

Explore The618 Grabber
1
-
1STEEL TUBE FRAME
This quality steel frame ensures high strength and durability.
-
2CAST STEEL BALE HOOKS
Once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while transporting bundles.
-
3ADJUSTABLE CROWD BAR
The Standard Grabber features an adjustable crowd bar that is mounted on the side of the grabber. When approaching a group of bales, the adjustable crowd bar works in combination with the back frame to crowd the bale group together.
DETAILED SPECS
Bale Configuration
6 Bales Wide and 3 Bales Long
Bundle Dimensions
90” Wide by 96” to 120” Long
Required Loader Capacity
2,200 lbs.
Working Height
1 ft. 1 in.
Working Length
7 ft. 11 in.
Working Width
7 ft. 3.5 in.
