Grabbers

615

  • For moving and grabbing 15-bale bundles
  • 15-bale grouping offers a 33% time-saving advantage in comparison to a 10-bale grouping, with each grab containing 50% more bales, and with a 33% reduction in the number of bundles
  • Bundle arrangement completely fills a 9’ by 20’ wagon
  • Requires a loader with at least 1,900lb lift capacity and one set of remotes

FIND A DEALER

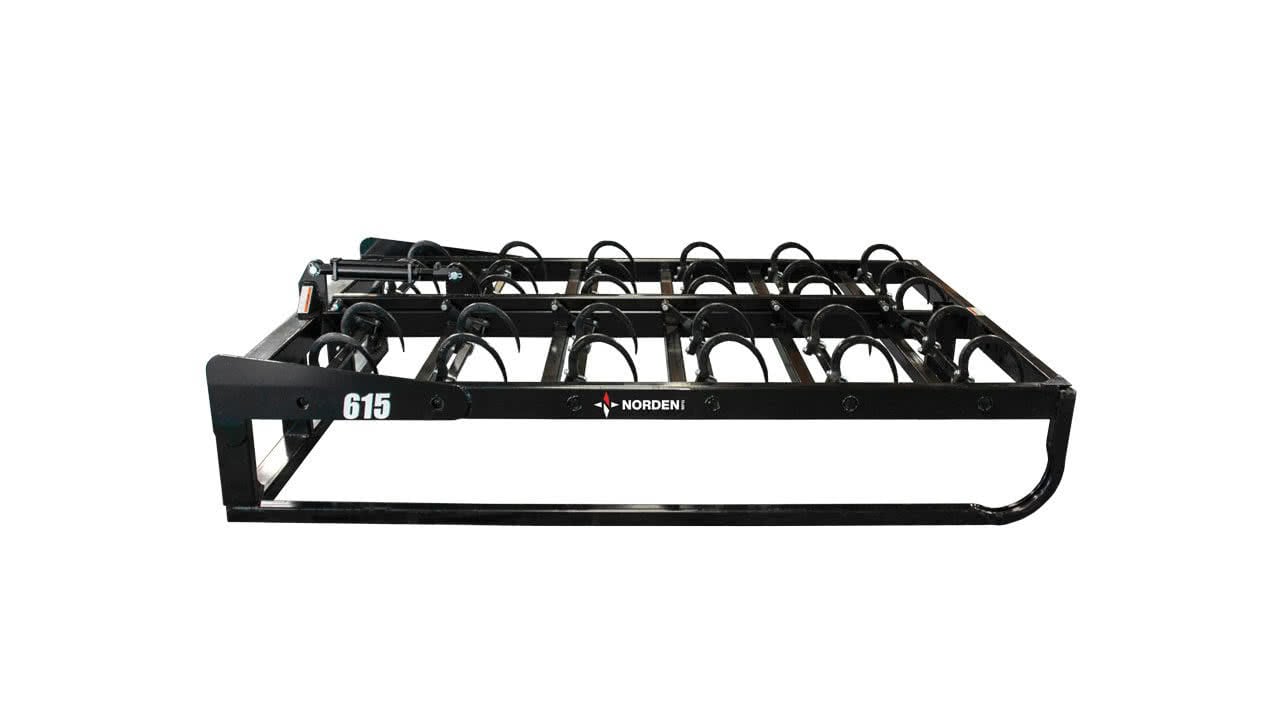

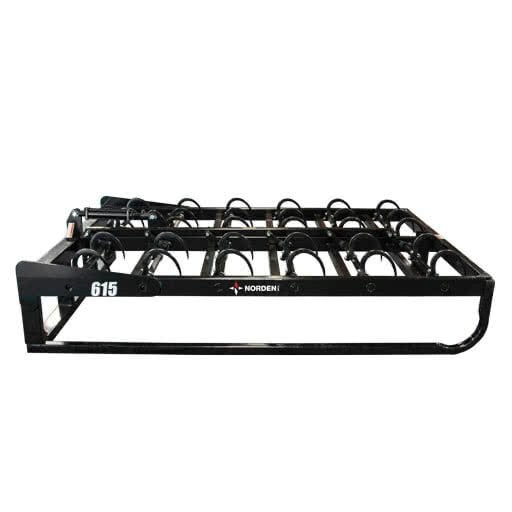

Explore The615 Grabber

615 Grabber 1
Steel Tube Frame 615
2
Cast Steel Hooks 615 Grabber
3
Adjustable Crowd Bar 615 Grabber
  • 1STEEL TUBE FRAME

    This quality steel frame ensures high strength and durability.

  • 2CAST STEEL BALE HOOKS

    Once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while in transportation.

  • 3ADJUSTABLE CROWD BAR

    The Standard Grabber features an adjustable crowd bar that is mounted on the side of the grabber. When approaching a group of bales, the adjustable crowd bar works in combination with the back frame to crowd the bale group together.

DETAILED SPECS

  • Bale Configuration

    5 Bales Wide and 3 Bales Long

  • Bundle Dimensions

    70” Wide and 96” to 132” Long

  • Required Loader Capacity

    1,900 lbs.

  • Working Height

    1 ft. 1 in.

  • Working Length

    7 ft. 11 in.

  • Working Width

    6 ft. 0 in.
