Grabbers
510
- For moving and grabbing 10-bale bundles
- If bales are 36″ long, you can cross-stack them with this model or the KN510 Tie-Grabber
- Compatible with similarly arranged bundles from competitors’ accumulator brands
- Requires a loader with at least 1,500lb lift capacity and one set of remotes

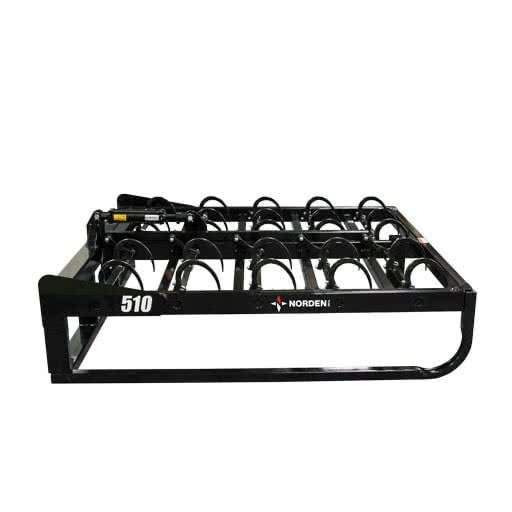

Explore The510 Grabber
1
-
1STEEL TUBE FRAME
This quality steel frame ensures high strength and durability.
-
2CAST STEEL BALE HOOKS
Once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while transporting bundles.
-
3ADJUSTABLE CROWD BAR
The Standard Grabber features an adjustable crowd bar that is mounted on the side of the grabber. When approaching a group of bales, the adjustable crowd bar works in combination with the back frame to crowd the bale group together.
DETAILED SPECS
Bale Configuration
5 Bales Wide and 2 Bales Long
Bundle Dimensions
75” Wide by 64” to 96” Long
Required Loader Capacity
1,500 lbs.
Working Height
1 ft. 1 in.
Working Length
6 ft. 0 in.
Working Width
6 ft. 0 in.
