Grabbers
408F
- For moving and grabbing 8-bale bundles
- Bale groups can be picked up from the tied end or untied end, enabling cross-stacking
- Two-bale length allows for narrower wagons or for grabbing longer bales than models that arrange for a 3-bale length
- Requires a loader with at least 1,400lb lift capacity and one set of remotes

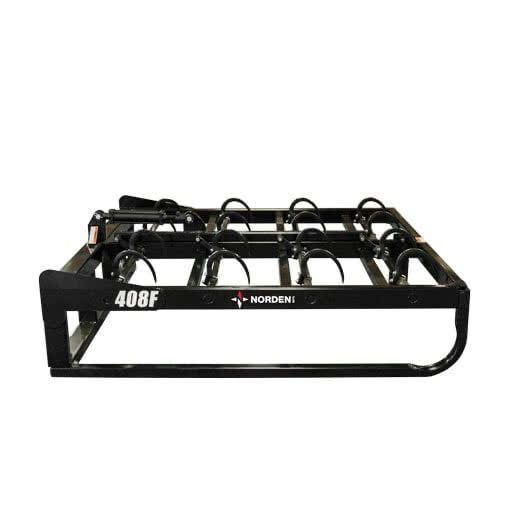

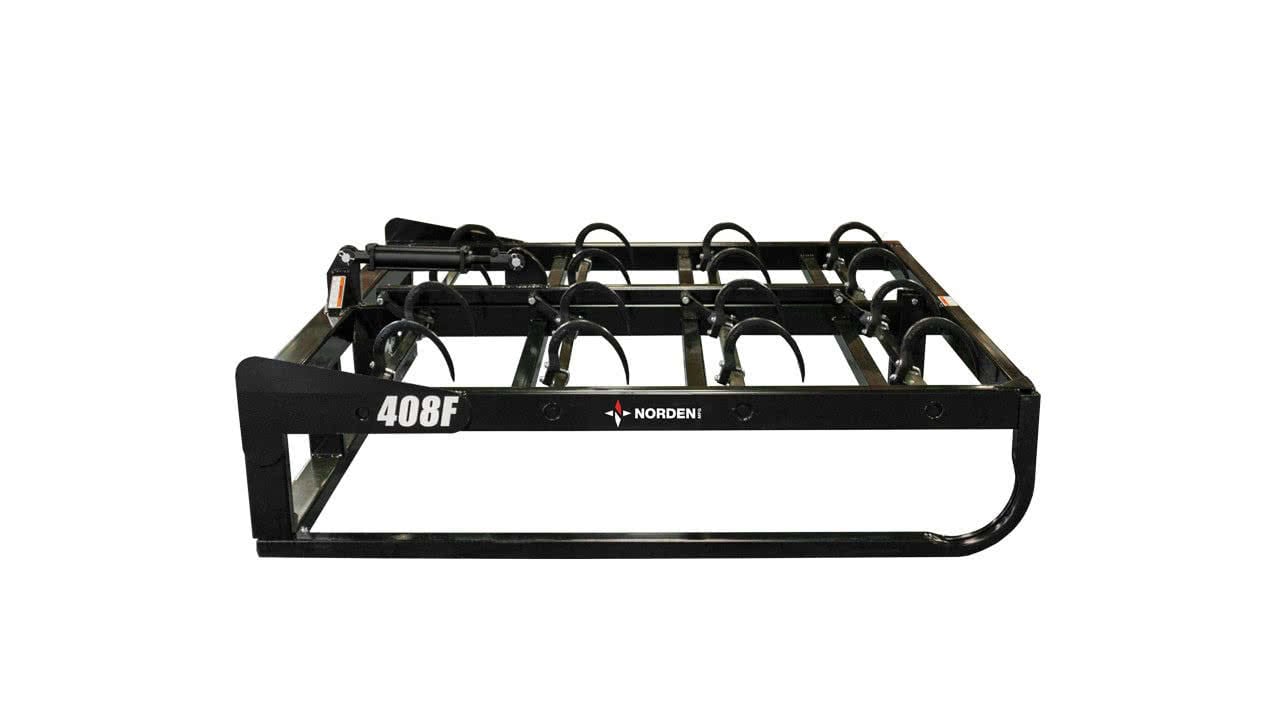

Explore The408F Grabber
1
-
1STEEL TUBE FRAME
This quality steel frame ensures high strength and durability.
-
2CAST STEEL BALE HOOKS
Once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while in transportation.
-
3ADJUSTABLE CROWD BAR
The Standard Grabber features an adjustable crowd bar that is mounted on the side of the grabber. When approaching a group of bales, the adjustable crowd bar works in combination with the back frame to crowd the bale group together.
DETAILED SPECS
Bale Configuration
4 Bales Wide and 2 Bales Long
Bundle Dimensions
72” Wide by 64” to 96” Long
Required Loader Capacity
1,400 lbs.
Working Height
1 ft. 1 in.
Working Length
6 ft. 0 in.
Working Width
6 ft. 0 in.
