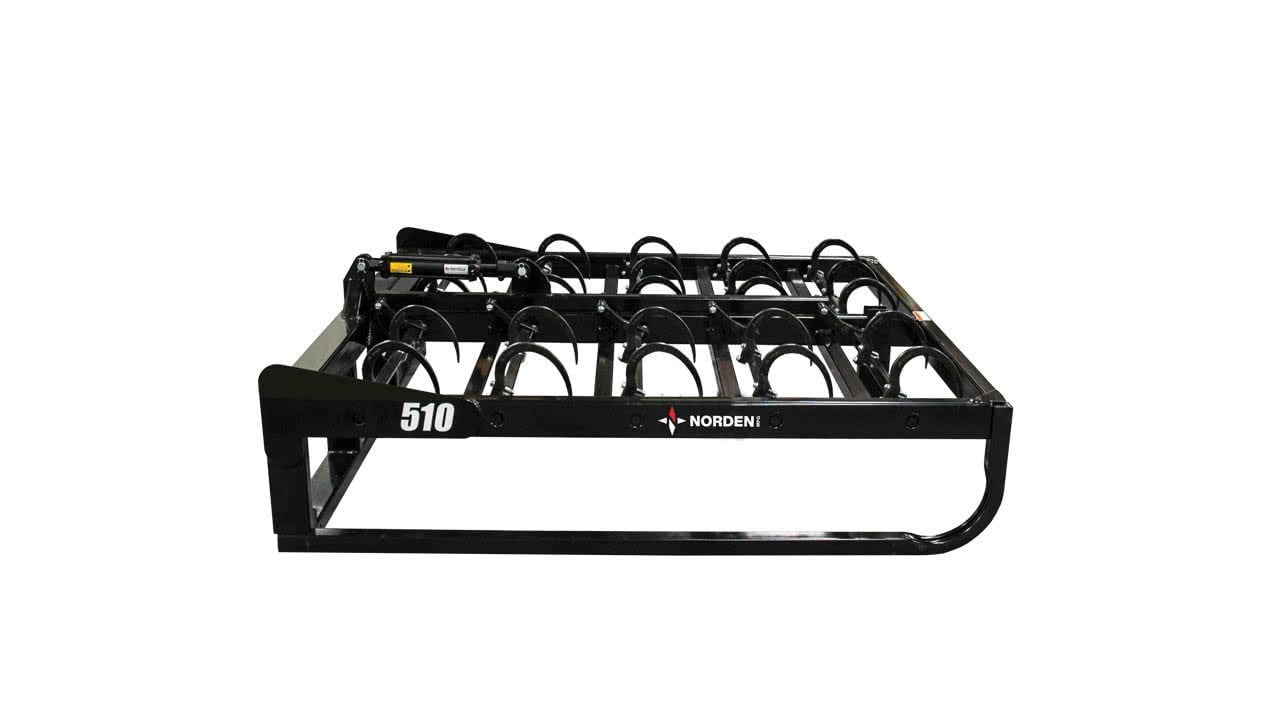

510 Grabber in action

Bale Grabbers

  • Bale Grabbers

    The Norden Grabber is mounted on your loader or skid steer and helps you gather and stack the bales. This simple hydraulic design utilizes two hooks per bale that grab the bales and allow you to stack the bales as a unit neatly on a trailer or wagon and in your barn. The Norden Grabber is exceptionally beefy and has a maintenance free design.

  • 18 Bale Edge
  • 618 Grabber

    The 618 grabber or grapple is ideal for moving and grabbing 18-bale bundles. This is paired with the AE18 Accumulator. The 18-bale grouping offers a 17% time-saving advantage in comparison to a 15-bale grouping, with each grab containing 20% more bales, and with a 17% reduction in the number of bundles. This bundle arrangement ideal for filling van trailers from the rear and for filling 9’ by 24’ wagons. Requires a loader with at least 2,200lb lift capacity and one set of remotes.

    618 Grabber
  • 618 Grabber

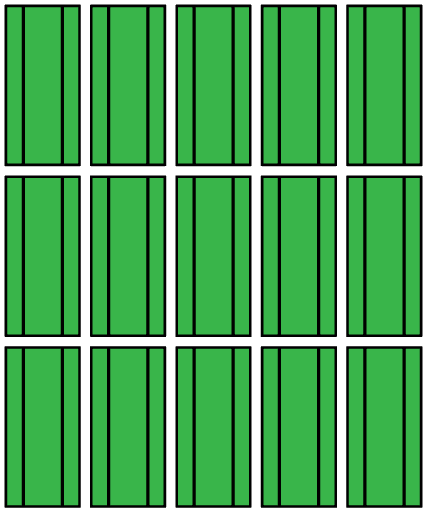

  • 15 Bale Flat
  • 615F Grabber

    The 615F grabber is ideal for moving and grabbing 15-bale bundles. This bale configuration ideal for filling van trailers from the rear and for 24’ wagons. This grapples requires a loader with at least 2,100lb lift capacity and one set of remotes. This is paired with the AF15 Accumulator

    615F Grabber
  • 510F Grabber

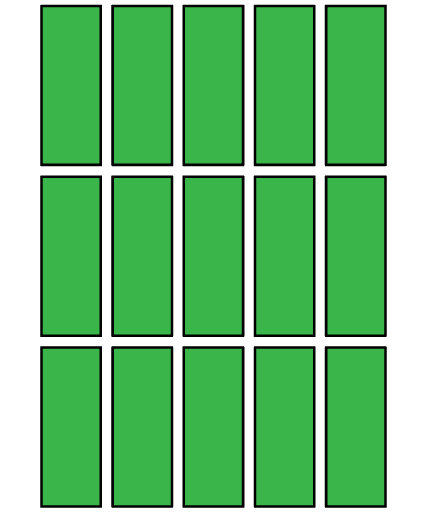

  • 15 Bale Edge
  • 615 Grabber

    The 615 grabber is ideal for moving and grabbing 15-bale bundles. This is paired with the AE15 Accumulator. The 15-bale grouping offers a 33% time-saving advantage in comparison to a 10-bale grouping, with each grab containing 50% more bales, and with a 33% reduction in the number of bundles. This bundle arrangement completely fills a 9’ by 20’ wagon. This requires a loader with at least 1,900lb lift capacity and one set of remotes.

    615 Grabber
  • 615 Grabber

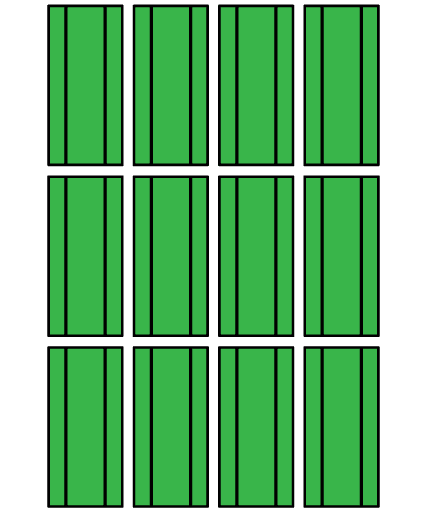

  • 12 Bale Flat
  • 612F Grabber

    The 612F Grabber or grapple is ideal for moving and grabbing 12-bale bundles. The bundle arrangement fills a 20’ wagon. This requires a loader with at least 1,800lb lift capacity and one set of remotes. This is paired with the AF12 Accumulator.

    612F Grabber
  • 612F Grabber

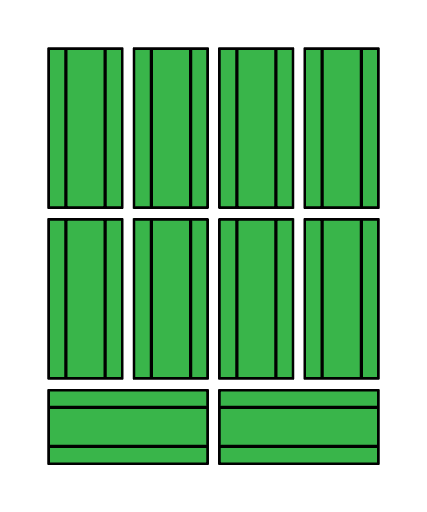

  • 10 Bale Flat
  • 510F Grabber

    The 510F grabber or grapple is ideal for moving and grabbing 10-bale bundles. This bale groups can be picked up from the tied end or untied end, enabling cross-stacking. This requires a loader with at least 1,700lb lift capacity and one set of remotes. This is paired with the AF10 Accumulator.

    510F Grabber
  • 510F Grabber

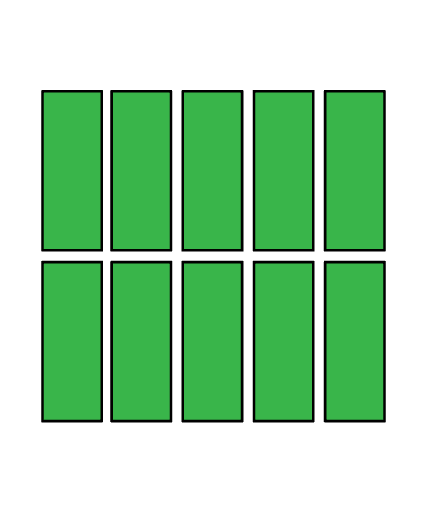

  • 10 Bale Edge
  • 510 Grabber

    The 510 grabber or grapple is ideal for moving and grabbing 10-bale bundles. If bales are 36″ long, you can cross-stack them with this model or the KN510 Tie-Grabber. Compatible with similarly arranged bundles from competitors’ accumulator brands. This requires a loader with at least 1,500lb lift capacity and one set of remotes. This is paired with the AE10 Accumulator.

    510 Grabber
  • 510 Grabber

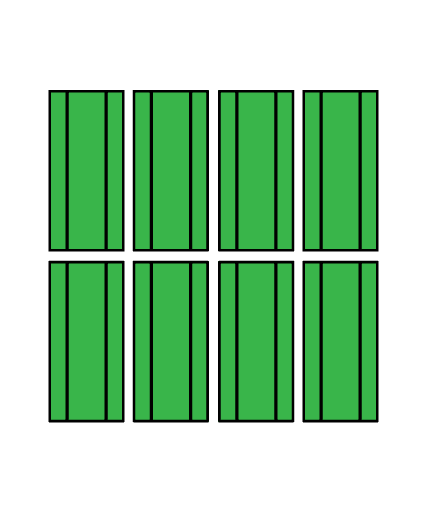

  • 8 Bale Flat
  • 408F Grabber

    The 408F grabber is ideal for moving and grabbing 8-bale bundles. This bale groups can be picked up from the tied end or untied end, enabling cross-stacking. The two-bale length allows for narrower wagons or for grabbing longer bales than models that arrange for a 3-bale length. This requires a loader with at least 1,400lb lift capacity and one set of remotes. This is paired with the AF8 Accumulator.

    408F Grabber
  • 408F Grabber

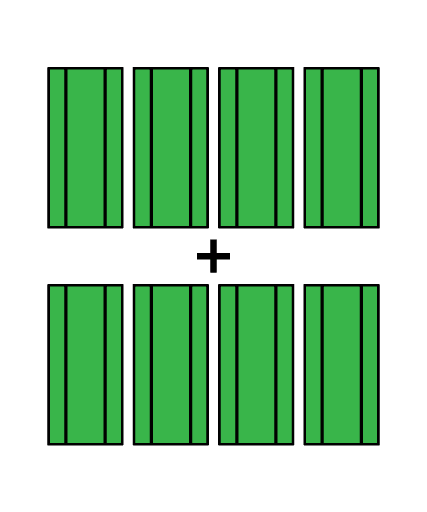

  • 4 Bale Flat
  • EGF8 Grabber

    This is the only available with a universal skid steer plate and handles bales 32″ to 38″ in length. The 2-bale length allows for narrower wagons or for longer bales than models that arrange bundles with a 3-bale length, and if bales are 36″ long, you can cross stack them with this model. This requires a loader with at least 1,150lb lift capacity and one set of remotes. This is paired with the AF4 Accumulator

    GRABBERS EGF8
  • EGF8 Bale Grabber
