ACCUMULATORS

Product Model	AE18 Learn More	AE15 Learn More	AF15 Learn More	AF12 Learn More	AE10 Learn More	AF10 Learn More	AF8 Learn More	AF4 Learn More
Bale Configuration	6 Bales Wide and 3 Bales Long	5 Bales Wide and 3 Bales Long	5 Bales Wide and 3 Bales Long	4 Bales Wide and 3 Bales Long	5 Bales Wide and 2 Bales Long	4 Bales Wide and 2 Bales Long + Tie Row of 2 (Sideways)	4 Bales Wide and 2 Bales Long	4 Bales Wide and 1 Bale Long
Bundle Dimensions	90” Wide by 96” to 120” Long	70” Wide by 96” to 132” Long	90" Wide by 96" to 132" Long	72" Wide by 96" to 132" Long	75” Wide by 64” to 96” Long	72” to 76” Wide by 88” to 94” Long	72" Wide by 64" to 96" Long	72" Wide by 64" to 96" Long
Weight	3030 lbs.	2,480 lbs.	2,740 lbs.	2290 lbs.	2,130 lbs	2240 lbs.	2010 lbs.	1232 lb
Length	24 ft. 7 in.	21 ft. 5 in.	21 ft. 9 in.	21 ft. 1 in.	17 ft. 4 in.	18 ft. 10 in.	17 ft. 0 in.	12 ft. 11 in.
Width	9 ft. 4 in.	7 ft. 10 in.	9 ft. 4 in.	7 ft. 10 in.	7 ft. 10 in.	7 ft. 10 in.	7 ft. 10 in.	7 ft. 4 in.
Height	12 ft. 7 in.	11 ft. 2 in.	11 ft. 5 in.	11 ft. 1 in.	9 ft. 2 in.	10 ft. 1 in.	9 ft. 2 in.	7 ft. 5 in.

GRABBERS

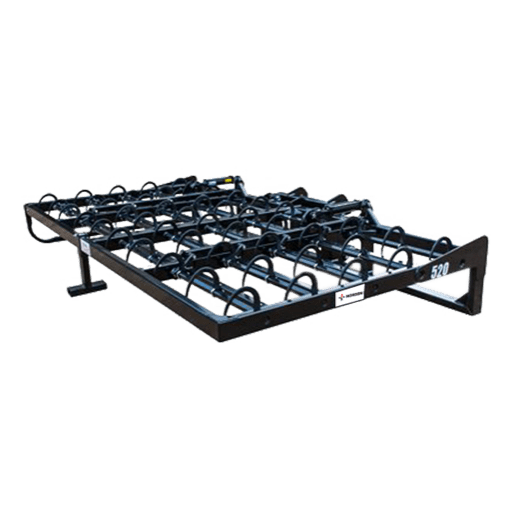

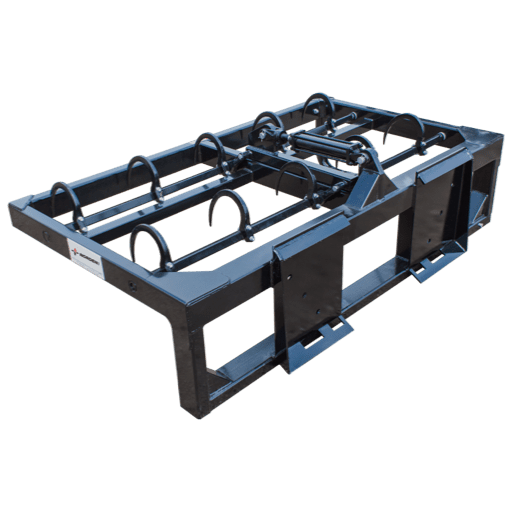

Product Model	520 Learn More	205 Learn More	618 Learn More	NH618 Learn More	615 Learn More	615F Learn More	NH615 Learn More	612F Learn More	510F Learn More	510 Learn More	408F Learn More	EGF8 Learn More
Bale Configuration	10 Bales Wide by 2 Bales Long	5 Bales by 1 Bale Long	6 Bales Wide and 3 Bales Long	3 Bales Wide by 6 Bales Long	5 Bales Wide and 3 Bales Long	5 Bales Wide and 3 Bales Long	5 Bales Long by 3 Bales Wide	4 Bales Wide and 3 Bales Long	4 Bales Wide and 2 Bales Long, plus a tie row with 2 bales turned sideways	5 Bales Wide and 2 Bales Long	4 Bales Wide and 2 Bales Long	4 Bales Wide and 2 Bales Long
Bundle Dimensions	150” Wide by 76” Long	75" Wide by 32" to 38" Long	90” Wide by 96” to 120” Long	102" to 108” Wide by 90” Long	70” Wide and 96” to 132” Long	90” Wide by 96” to 132” Long	102" to 108” Wide by 75” Long	72” Wide by 96” to 132” Long	72” to 76” Wide by 88” to 94” Long	75” Wide by 64” to 96” Long	72” Wide by 64” to 96” Long	72” Wide by 64” to 96” Long
Required Loader Capacity	3,000 lbs.	750 lbs.	2,200 lbs.	2,200 lbs.	1,900 lbs.	2,100 lbs.	1,900 lbs.	1,800 lbs.	1,700 lbs.	1,500 lbs.	1,400 lbs.	1,500 lbs.
Length	6 ft. 0 in.	3 ft. 0 in.	7 ft. 11 in.	7 ft. 5 in.	7 ft. 11 in.	7 ft. 11 in.	6 ft. 0 in.	7 ft. 11 in.	7 ft. 6 in.	6 ft. 0 in.	6 ft. 0 in.	6 ft. 0 in.
Width	12 ft. 0 in.	6 ft. 0 in.	7 ft. 3.5 in.	8 ft. 6 in.	6 ft. 0 in.	7 ft. 3.5 in.	8 ft. 6 in.	6 ft. 0 in.	6 ft. 0 in.	6 ft. 0 in.	6 ft. 0 in.	5 ft. 8 in.
Height	1 ft. 1 in.	1 ft. 1 in.	1 ft. 1 in.	1 ft. 1 in.	1 ft. 1 in.	1 ft. 1 in.	1 ft. 1 in.	1 ft. 1 in.	1 ft. 1 in.	1 ft. 1 in.	1 ft. 1 in.	0 ft. .9 in.

TIE-GRABBERS

Product Model	KN618 Learn More	KN615 Learn More	KN615F Learn More	KN612F Learn More	KN510 Learn More	KN510F Learn More	KN408F Learn More
Bale Configuration	6 Bales Wide and 3 Bales Long	5 Bales Wide and 3 Bales Long	5 Bales Wide and 3 Bales Long	4 Bales Wide and 3 Bales Long	5 Bales Wide and 2 Bales Long	4 Bales Wide and 2 Bales Long, plus a tie row with 2 bales turned sideways	4 Bales Wide and 2 Bales Long
Bundle Dimensions	90” Wide by 96” to 120” Long	70” Wide by 96” to 132” Long	32” Wide by 44” Long	72” Wide by 96” to 132” Long	75” Wide by 64” to 96” Long	72” to 76” Wide by 88” to 94” Long	72” Wide by 64” to 96” Long
Required Loader Capacity	2,600 lbs.	2,400 lbs.	2,500 lbs.	2,300 lbs.	1,800	1,900 lbs.	1,700 Lbs.
Length	7 ft. 11 in.	7 ft. 11 in.	7 ft. 11 in.	7 ft. 11 in.	6 ft. 0 in.	7 ft. 6 in.	6 ft. 0 in.
Width	7 ft. 3.5 in.	6 ft. 0 in.	7 ft. 3.5 in.	6 ft. 0 in.	6 ft. 0 in.	6 ft. 0 in.	6 ft. 0 in.
Height	2 ft. 6 in.	2 ft. 6 in.	2 ft. 6 in.	2 ft. 6 in.	2 ft. 6 in.	2 ft. 6 in.	2 ft. 6 in.

WHEEL RAKES

Product Model	WR10 Learn More	WR8 Learn More	WR12 Learn More
Min Pickup Width	203.2	179.4	227"
Max Pickup Width	254.6	215.6	293.5"
Windrow Width	40"-88"	40"-88"	40"-88"
Length
Width
Height
