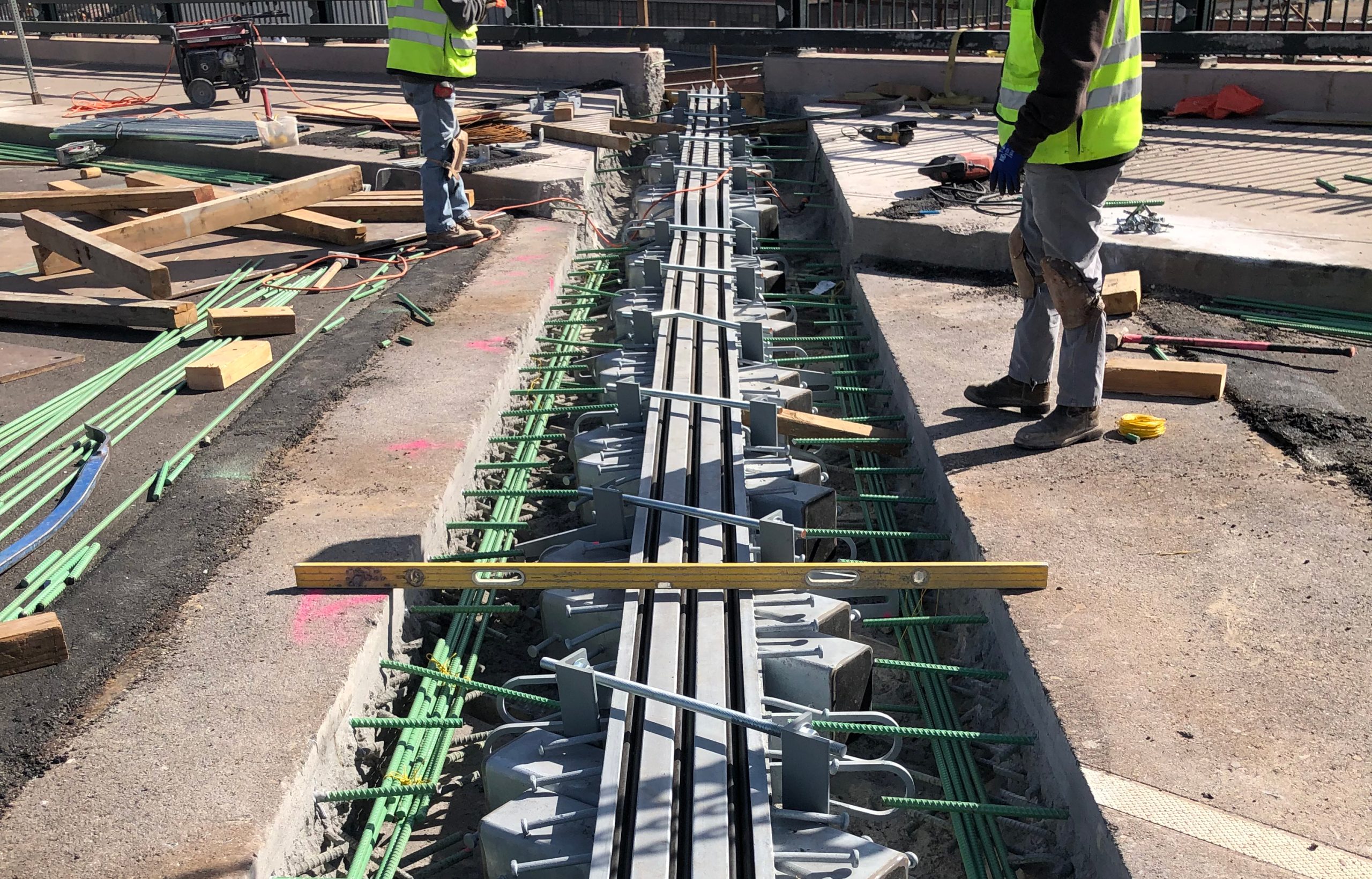

Steelflex Molular Expansion Joint

Joint Selection and Design Data for Steelflex® Modular Expansion Joint Systems

Product Description

Features & Benefits

The Steelflex Molular Expansion Joint is known for accomodating and sealing significant joint movements on bridge structures. This system is designed to provide a watertight, fatigue-resistant, long-term and maintainence-free solution.

The Steelflex Molular Expansion Joint design incorporates a strip sealing element based on the compression of the neoprene seal lug into the gland recess of the center beam and edge beam.

From 4 to 28.35 inches of longitudinal movement.

Maximum +/-.79 inches of transverse displacement.

Highly engineered system comprised of dynamic load bearing center beams welded to multiple support bars and cast-in-place into expansion joint.
Steel center and edge beams with mechanically locked elastomeric sealing elements.
Robust rubber support bar springs and bearings.
Fatigue tested and designed.
Watertight and replaceable sealing elements.
Certified by American Institute of Steel Construction.
